Question 1

Question 1

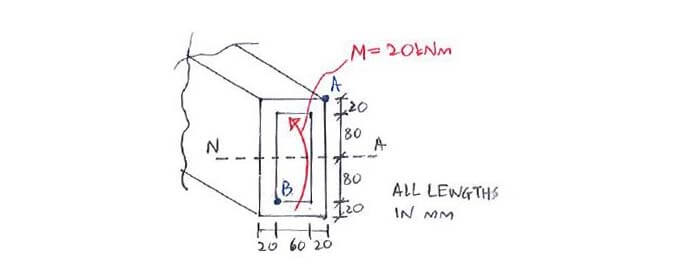

Flexure Formula question 1

Determine the bending stress developed in points A and B of the rectangular hollow section.

Determine the bending stress developed in points A and B of the rectangular hollow section.

Click below to show answer. X

Step 1:
Calculate moment of inertia I

Step 1:
Calculate moment of inertia I

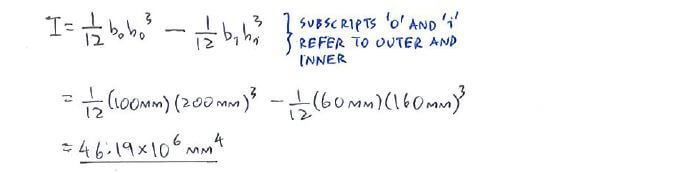

Flexure Formula solution step 1

Step 2:
Calculate bending stresses σ_b,A and σ_b,B

Step 2:
Calculate bending stresses σ_b,A and σ_b,B

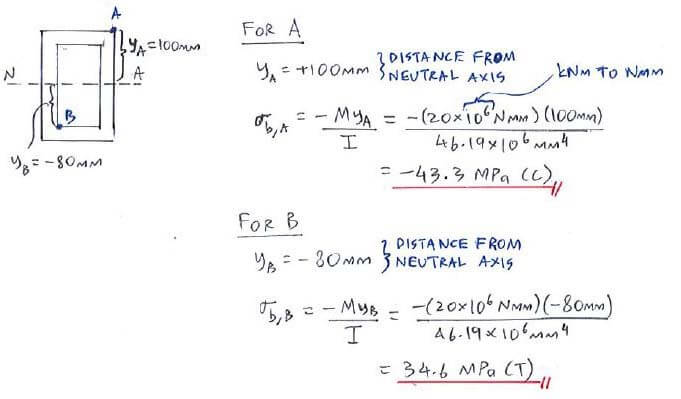

Flexure Formula solution step 2

Useful formula:

Useful formula:

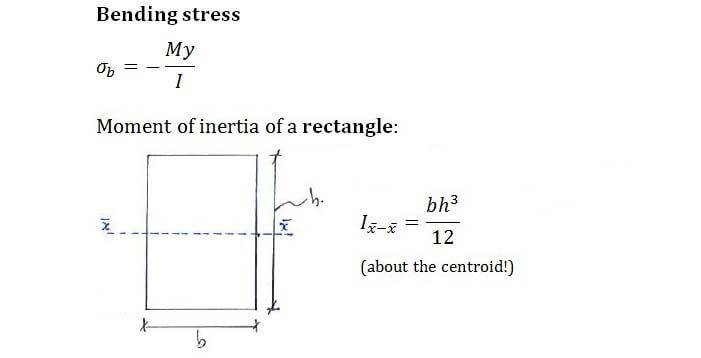

Flexure Formula formula

Now that you've mastered this question, you can try Question 2.
