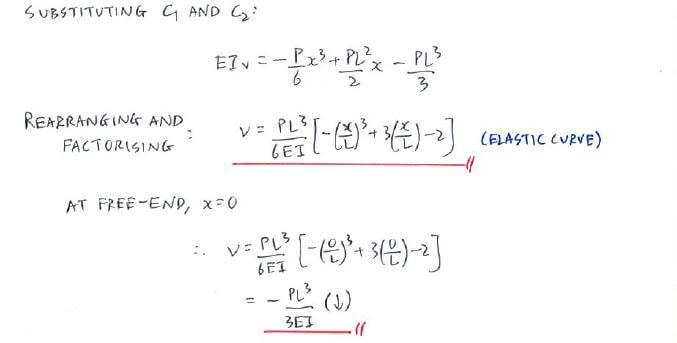

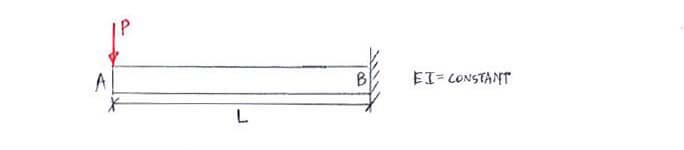

Obtain the elastic curve equation for the cantilevered beam above. Also obtain the expression for the deflection ν at the free end.

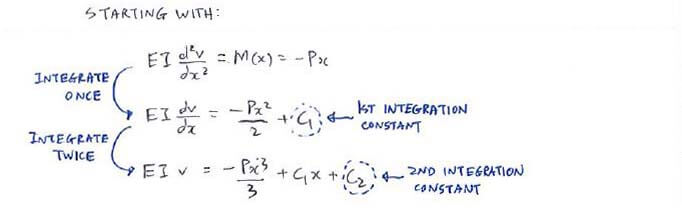

>> Note: The elastic curve equation is basically the equation for the deflection ν after integrating twice.
Obtain the elastic curve equation for the cantilevered beam above. Also obtain the expression for the deflection ν at the free end.
>> Note: The elastic curve equation is basically the equation for the deflection ν after integrating twice.
