Discontinuity Functions (Macaulay’s Method) question 1

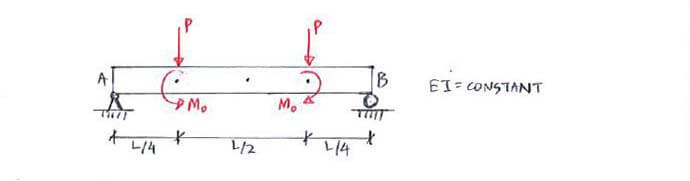

Obtain the elastic curve expression for the beam. Use the Macaulay function.

Obtain the elastic curve expression for the beam. Use the Macaulay function.

Click below to show answer. X

Step 1:
Section cut to get moment equation (with Macaulay brackets)

Step 1:
Section cut to get moment equation (with Macaulay brackets)

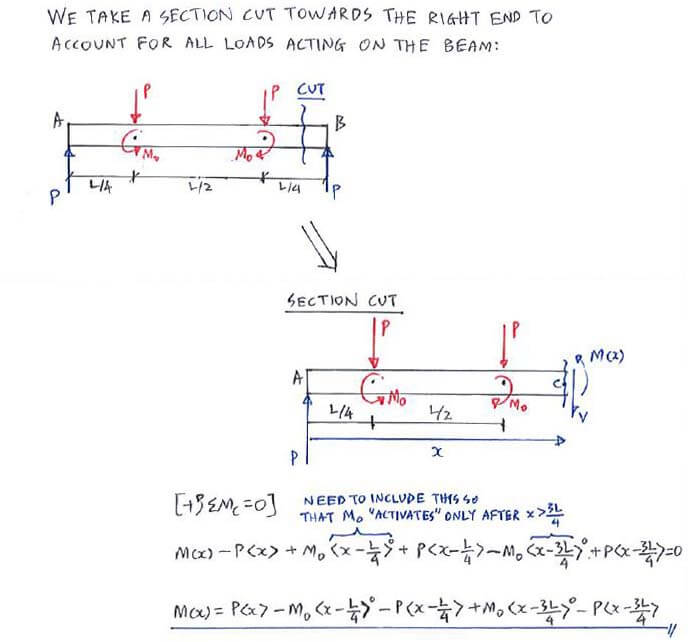

Discontinuity Functions (Macaulay’s Method) solution step 1

Step 2:
Integrate twice

Step 2:
Integrate twice

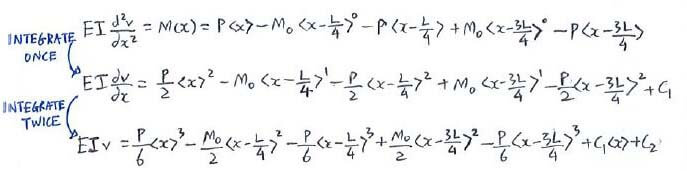

Discontinuity Functions (Macaulay’s Method) solution step 2

Step 3:
Apply boundary conditions (BCs) to get C₁ and C₂

Step 3:
Apply boundary conditions (BCs) to get C₁ and C₂

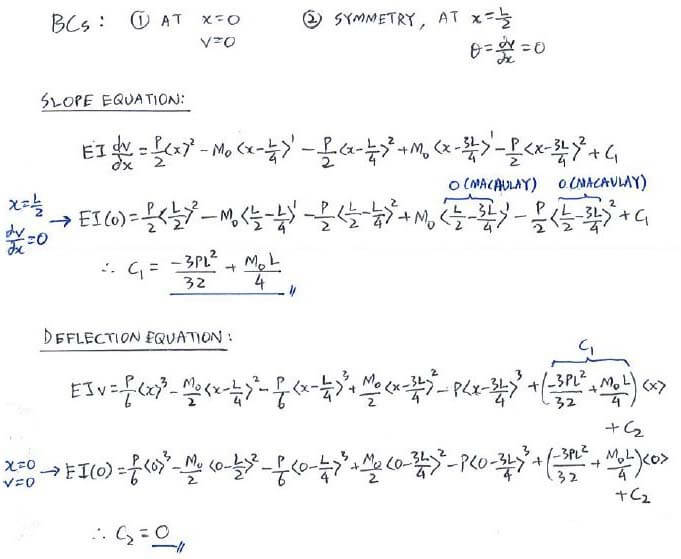

Discontinuity Functions (Macaulay’s Method) solution step 3

Step 4:
Final elastic curve equation

Step 4:
Final elastic curve equation

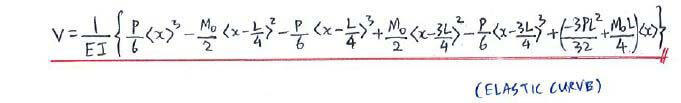

Discontinuity Functions (Macaulay’s Method) solution step 4

Useful formula:

Useful formula:

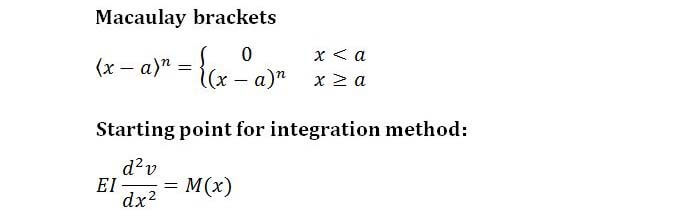

Discontinuity Functions (Macaulay’s Method) formula
