Example Question 2

Example Question 2

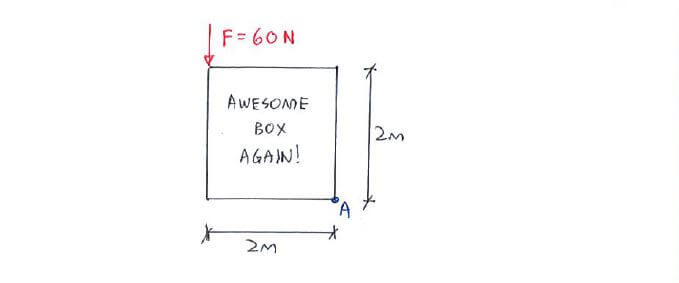

Moment and Couple example question 2

Find the equivalent force-couple at point A.

Find the equivalent force-couple at point A.

Click below to show answer. X

Step 1:
Identify equivalent force-couple at A

Step 1:
Identify equivalent force-couple at A

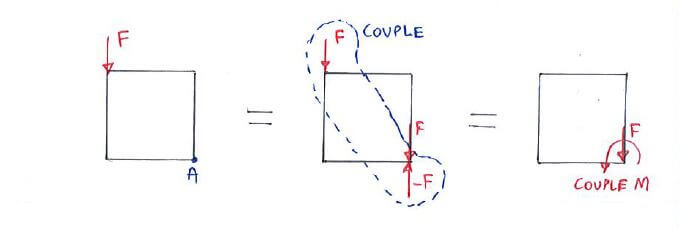

Moment and Couple solution step 1

Step 2:
Calculate couple

Step 2:
Calculate couple

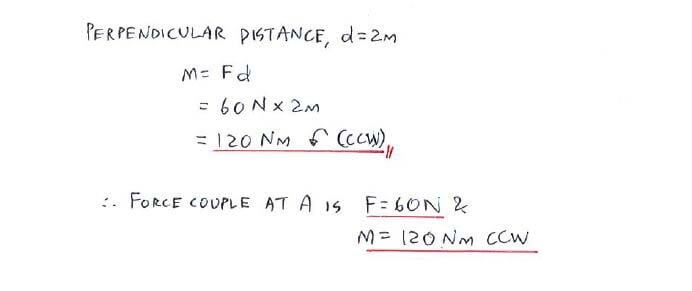

Moment and Couple solution step 2

Useful formula:

Useful formula:

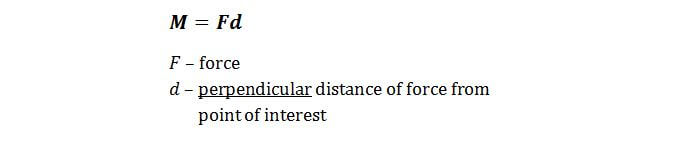

Moment and Couple formula

Now that you've mastered this question, you can try Question 1.
