Example Question

Example Question

Elastic deformation example question

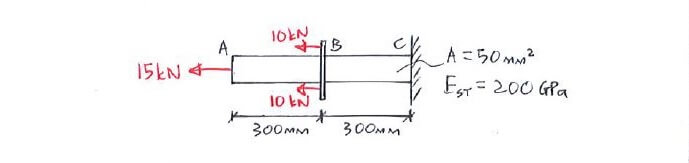

Given the parameters above, find the displacement of point A.

Given the parameters above, find the displacement of point A.

Click below to show answer. X

Step 1:

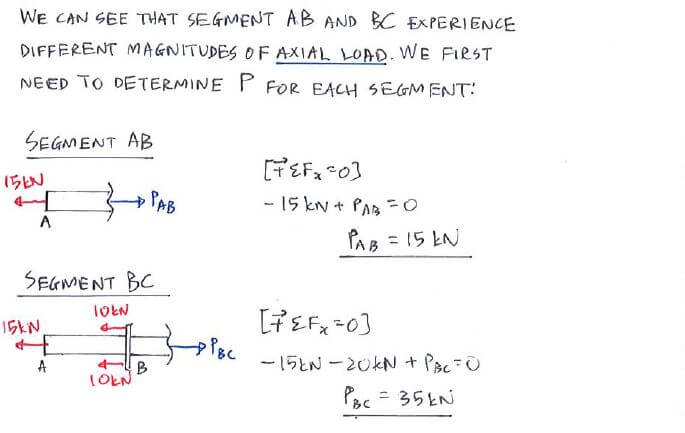

Determine axial loads P in each member segment

Step 1:
Determine axial loads P in each member segment

Elastic deformation solution step 1

Step 2:

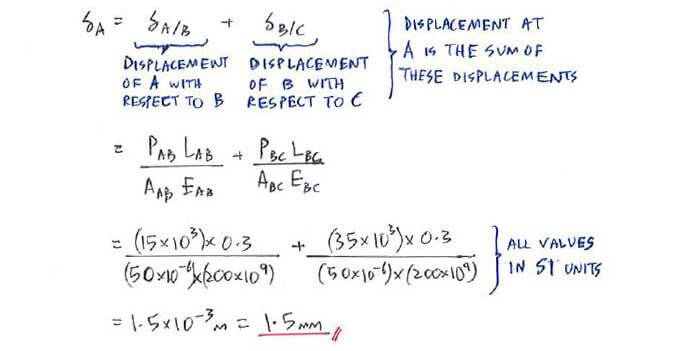

Calculate displacement at A

Step 2:
Calculate displacement at A

Elastic deformation solution step 1

Useful formula:

Useful formula:

Elastic deformation formula

Now that you've mastered this question, you can try Question 1.
