Elastic deformation question 2

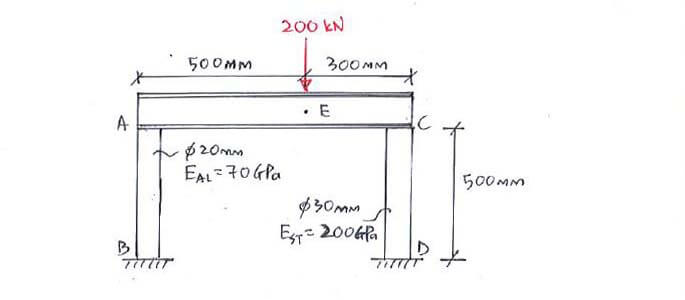

Beam AEC is a rigid beam and is supported by circular columns AB and CD. Find the displacement at point E

Beam AEC is a rigid beam and is supported by circular columns AB and CD. Find the displacement at point E

Click below to show answer. X

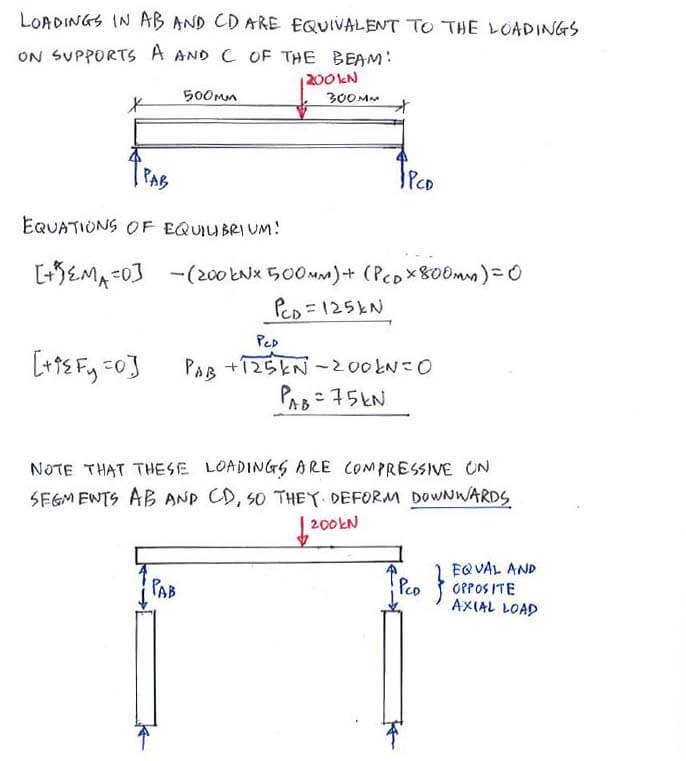

Step 1:
Determine axial loads P in segments AB and CD

Step 1:
Determine axial loads P in segments AB and CD

Elastic deformation solution step 1

Step 2:
Calculate displacements in AB and CD

Step 2:
Calculate displacements in AB and CD

Elastic deformation solution step 2

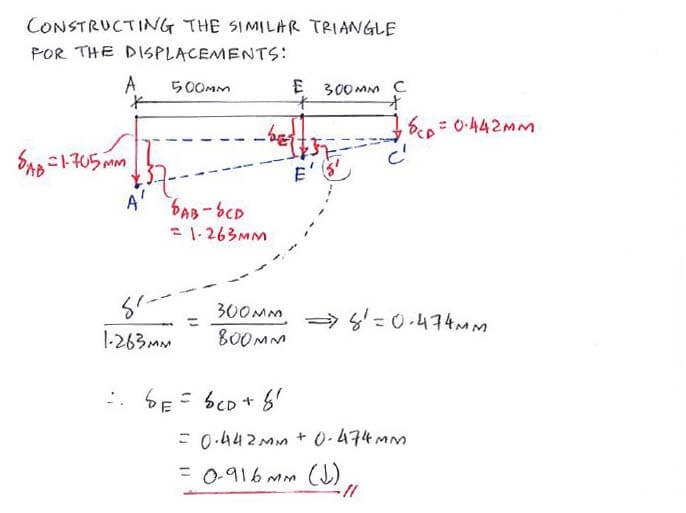

Step 3:
Determine displacement at E via similar triangles

Step 3:
Determine displacement at E via similar triangles

Elastic deformation solution step 3

Useful formula:

Useful formula:

Elastic deformation formula

Congratulations! You've completed all the questions in this topic. Let's look at C2.2: Statically Indeterminate Analysis now.
