Question 1

Question 1

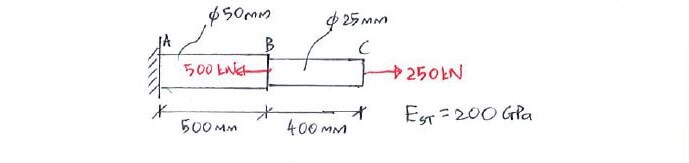

Elastic deformation question 1

Find the displacement at C

Find the displacement at C

Click below to show answer. X

Step 1:
Determine axial loads P in each member segment

Step 1:
Determine axial loads P in each member segment

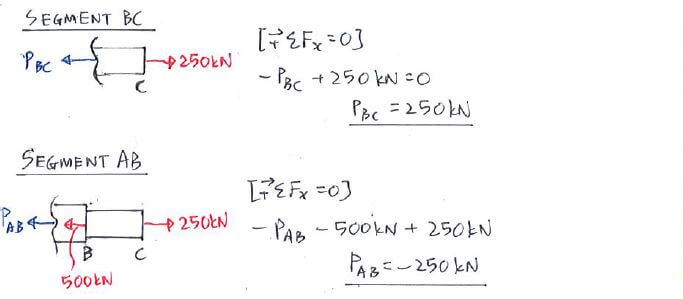

Elastic deformation solution step 1

Step 2:
Calculate displacement at C

Step 2:
Calculate displacement at C

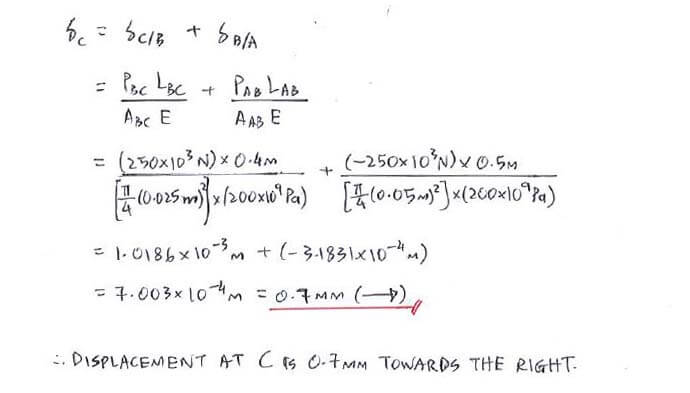

Elastic deformation solution step 2

Useful formula:

Useful formula:

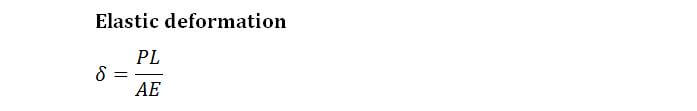

Elastic deformation formula

Now that you've mastered this question, you can try Question 2.
