Torsion Formula question 2

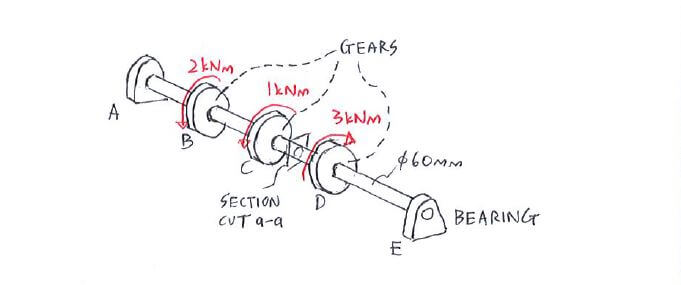

The shaft above is supported by 2 bearings at its ends, with torques applied on gears B, C and D.

Determine the maximum shear-stress developed in section a-a.

The shaft above is supported by 2 bearings at its ends, with torques applied on gears B, C and D.

Determine the maximum shear-stress developed in section a-a.

Click below to show answer. X

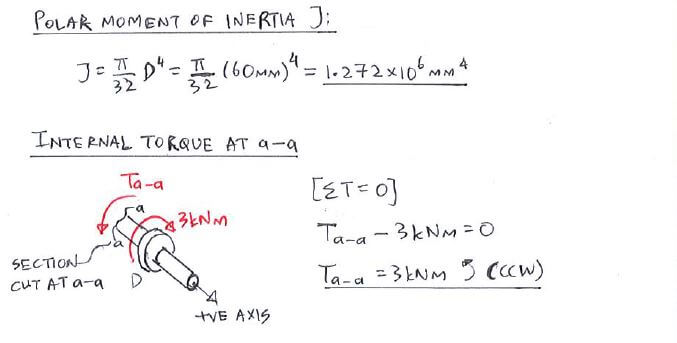

Step 1:
Calculate J and internal torque at section a-a

Step 1:
Calculate J and internal torque at section a-a

Torsion Formula solution step 1

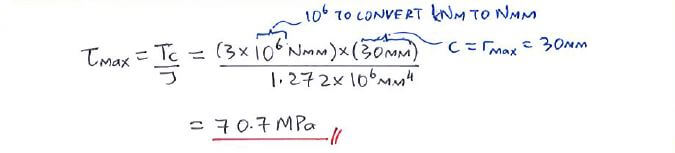

Step 2:
Calculate τ_max at section a-a

Step 2:
Calculate τ_max at section a-a

Torsion Formula solution step 2

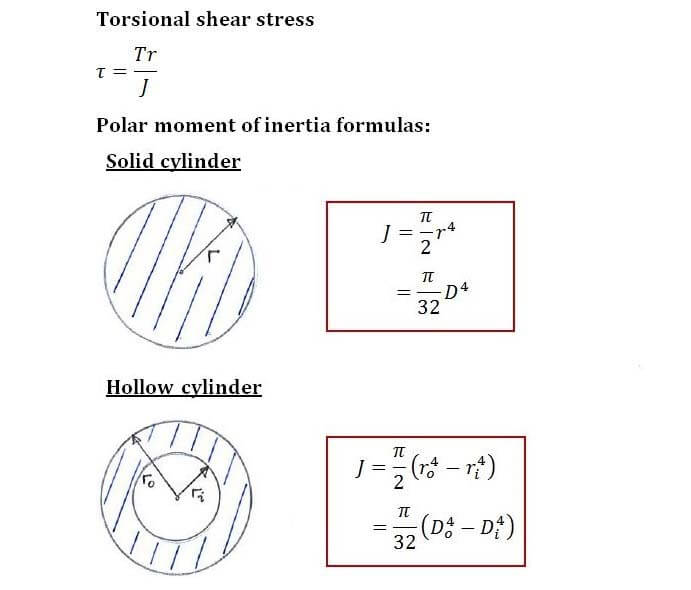

Useful formula:

Useful formula:

Torsion Formula

Congratulations! You've completed all the questions in this topic. Let's look at C3.2: Power Transmission now.
