Angle of Twist example question

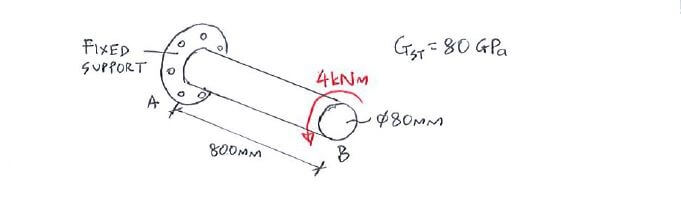

Calculate the angle of twist of end B with respect to the fixed end.

Calculate the angle of twist of end B with respect to the fixed end.

Click below to show answer. X

Step 1:
Calculate polar moment of inertia J

Step 1:
Calculate polar moment of inertia J

Angle of Twist solution step 1

Step 2:
Calculate angle of twist Φ_B/A

Step 2:
Calculate angle of twist Φ_B/A

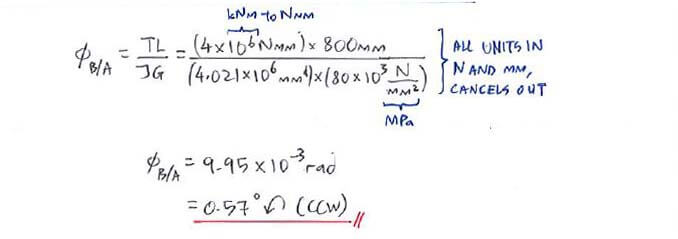

Angle of Twist solution step 2

Useful formula:

Useful formula:

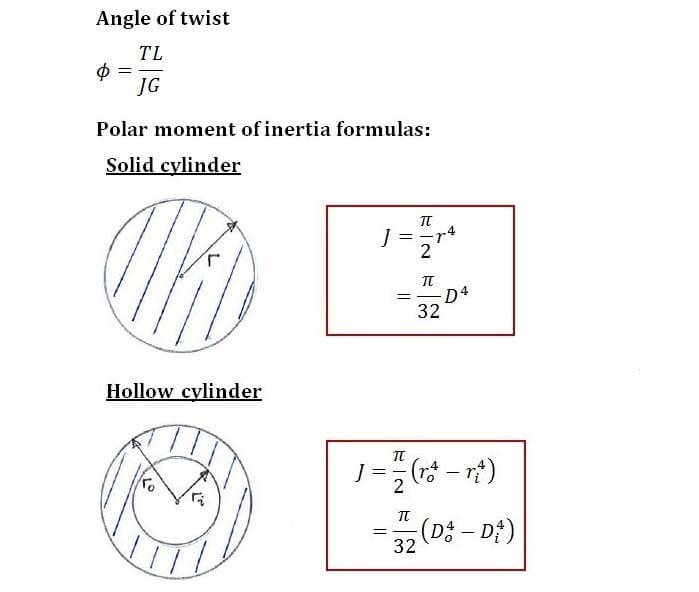

Angle of Twist formula

Now that you've mastered this question, you can try Question 1.
