Question 1

Question 1

Angle of Twist question 1

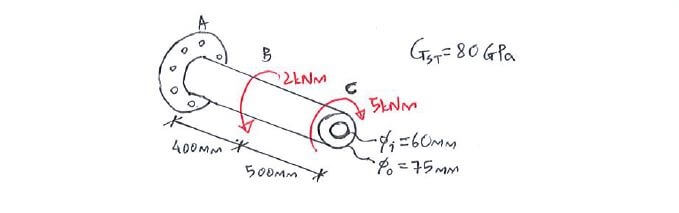

Calculate the angle of twist at C with respect to A.

Calculate the angle of twist at C with respect to A.

Click below to show answer. X

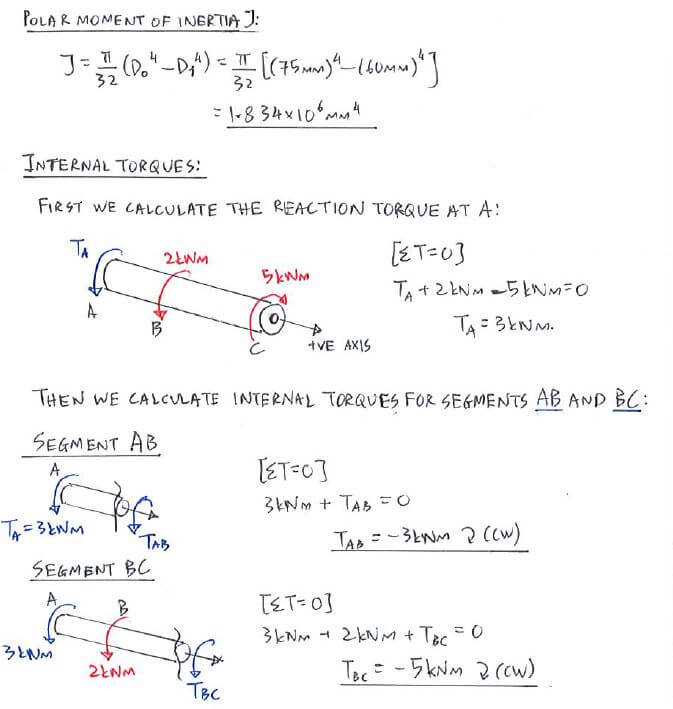

Step 1:
Calculate polar moment of inertia J and internal torques T

Step 1:
Calculate polar moment of inertia J and internal torques T

Angle of Twist solution step 1

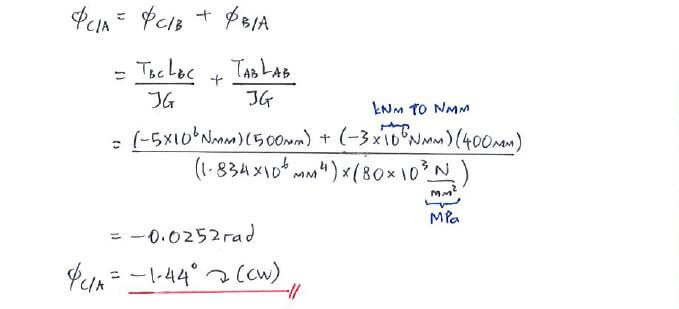

Step 2:
Calculate angle of twist Φ_C/A

Step 2:
Calculate angle of twist Φ_C/A

Angle of Twist solution step 2

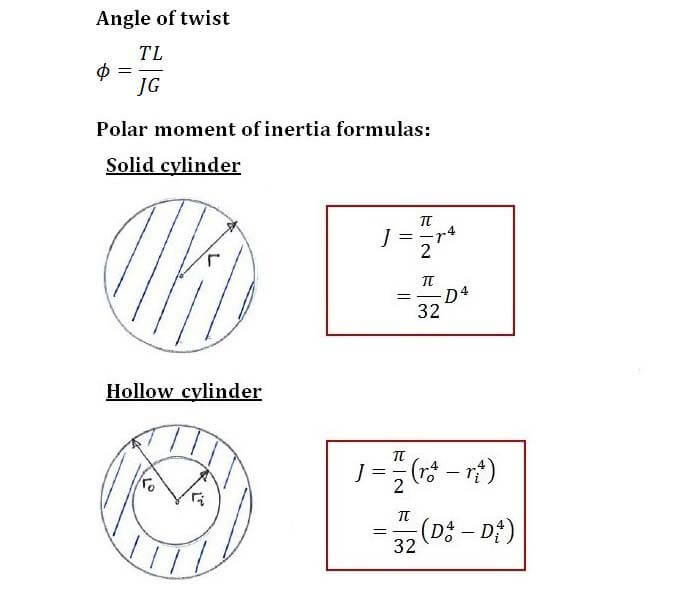

Useful formula:

Useful formula:

Angle of Twist formula

Now that you've mastered this question, you can try Question 2.
