Click below to show answer.
X

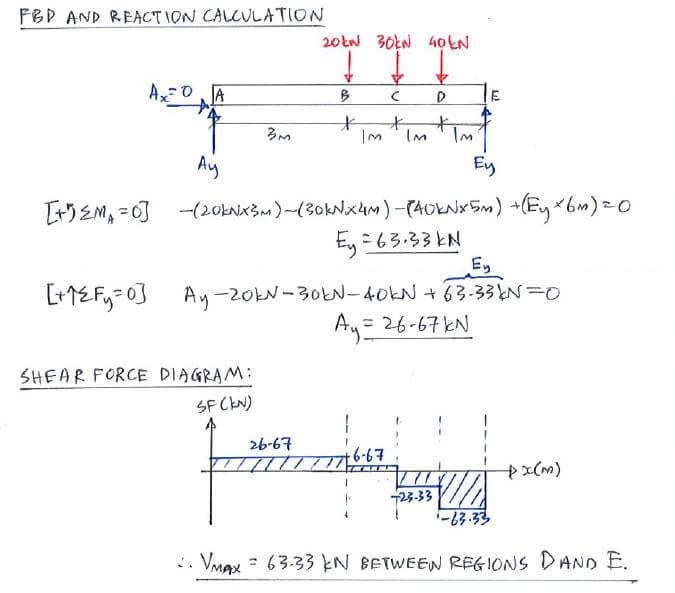

Step 1: Draw shear force diagram to obtained maximum shear force
Step 1: Draw shear force diagram to obtained maximum shear force
|
|
|
Step 2: Calculate moment of inertia I
Step 2: Calculate moment of inertia I
|
|
|
|
Useful formula:
Useful formula:
|
|
|
Now that you've mastered this question, you can try Question 3.
