C5: Transverse Shear
5.1 Shear Formula
- Theory - Example - Question 1 - Question 2 - Question 3

C5.1 Shear Formula

In Chapter 1.1, we considered the average shear stress due to an applied shear force. However the shear stress is actually distributed differently along the cross-section in a non-uniform manner.

We’ll be looking at calculating the actual shear stress at any region of interest along a cross-section.

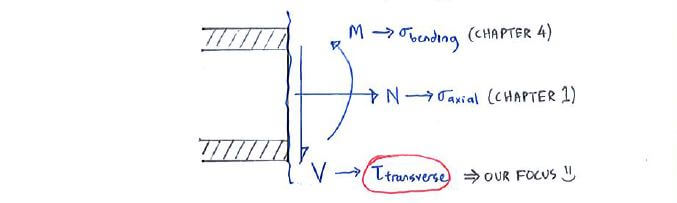

Transverse shear stress due to shear force acting on cross-section

C5.1 Shear Formula

In Chapter 1.1, we considered the average shear stress due to an applied shear force. However the shear stress is actually distributed differently along the cross-section in a non-uniform manner.

We’ll be looking at calculating the actual shear stress at any region of interest along a cross-section.


Transverse shear stress due to shear force acting on cross-section

Transverse shear formula

The transverse shear stress can be calculated as follows:


Transverse shear formula
Note:
  • V is the shear force applied (units: N or kN)
  • I is the moment of inertia of the cross-section (units: m4 or mm4)
  • t is the thickness of the cross-section where you are calculating your shear stress (units: m or mm)
  • Q = Aȳ, we’ll explain more below
  • Sign: +ve or –ve doesn’t really matter at this point; more on this in stress transformation.

Q = Aȳ

Here is how Q = Aȳ is calculated:

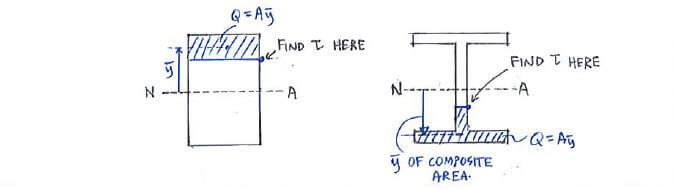

Q equals area times ybar calculation for transverse shear stress
Note:
  • Q considers the area above the point where you’re calculating your shear stress. It’s the product of A and ȳ.
  • A is the area of the region above your point of interest.
  • ȳ is the centroid of the area above your point of interest, with respect to the neutral-axis.
  • Units: m2 (area) × m (ȳ centroid) = m3 or mm3 for Q
  • The calculation of Q is the same for either the top half or bottom half of the cross-section, and there’s no –ve Q even when you consider the bottom half.

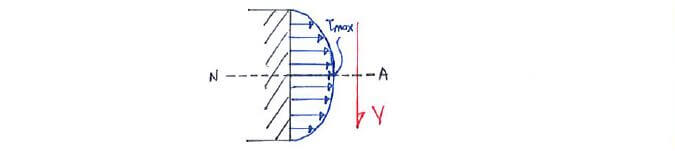

Shear stress distribution

Shear stress distribution
Note:
  • At the top and bottom of the cross-section, Q = 0 and therefore τ = 0.
  • At the neutral axis, Q is maximum and therefore τ is max.
  • Between the neutral-axis and the top/bottom edges, τ varies parabolically.

Let’s look at an example now.

Transverse shear formula

The transverse shear stress can be calculated as follows:


Transverse shear formula
Note:
  • V is the shear force applied (units: N or kN)
  • I is the moment of inertia of the cross-section (units: m4 or mm4)
  • t is the thickness of the cross-section where you are calculating your shear stress (units: m or mm)
  • Q = Aȳ, we’ll explain more below
  • Sign: +ve or –ve doesn’t really matter at this point; more on this in stress transformation.

Q = Aȳ

Here is how Q = Aȳ is calculated:


Q equals area times ybar calculation for transverse shear stress
Note:
  • Q considers the area above the point where you’re calculating your shear stress. It’s the product of A and ȳ.
  • A is the area of the region above your point of interest.
  • ȳ is the centroid of the area above your point of interest, with respect to the neutral-axis.
  • Units: m2 (area) × m (ȳ centroid) = m3 or mm3 for Q
  • The calculation of Q is the same for either the top half or bottom half of the cross-section, and there’s no –ve Q even when you consider the bottom half.

Shear stress distribution

Shear stress distribution
Note:
  • At the top and bottom of the cross-section, Q = 0 and therefore τ = 0.
  • At the neutral axis, Q is maximum and therefore τ is max.
  • Between the neutral-axis and the top/bottom edges, τ varies parabolically.

Let’s look at an example now.
