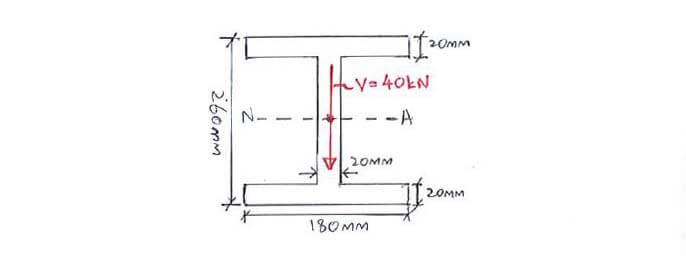

Determine the shear force resisted by the web of the I-section. (Hint: It's pretty similar to Question 2 of Chapter 4.2)
>> Understanding the question

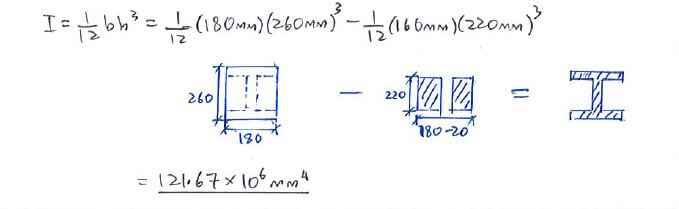

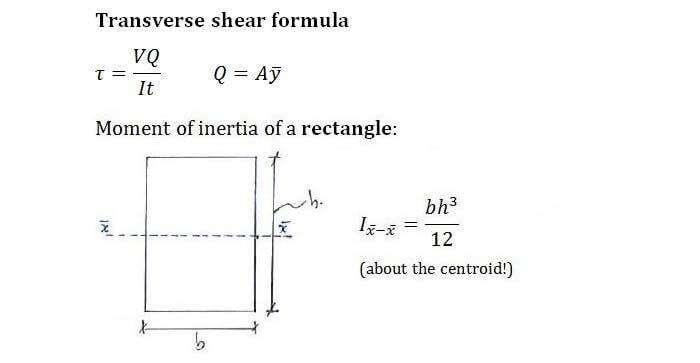

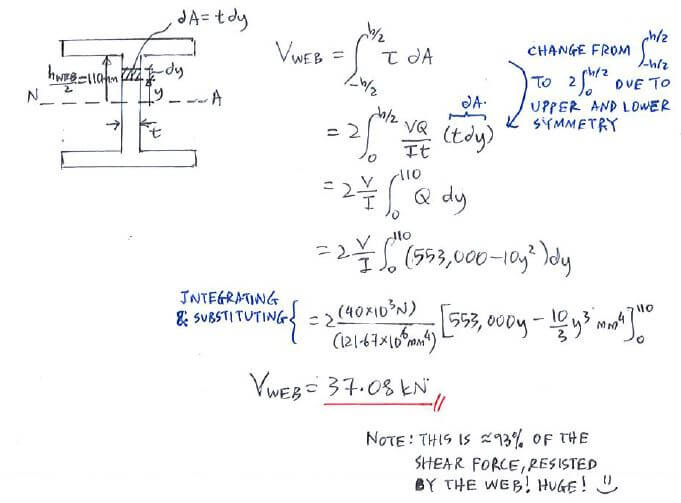

Here we use the τ developed in the web to calculate the forces in the web (V = ∫dV = ∫τdA). Let's see how we can achieve this:
Congratulations! You've completed all the questions in this topic. Let's look at C6: Combined Loadings now.
