Example Question

Example Question

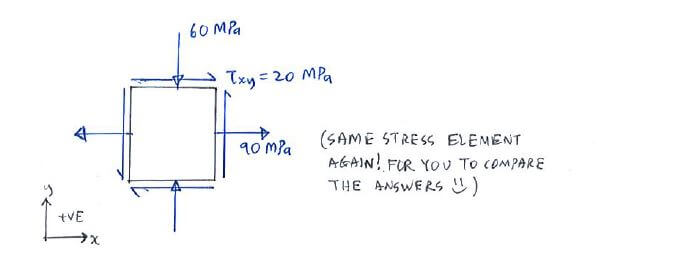

Mohr’s Circle example question

Calculate σ₁, σ₂, τ_{max in-plane} and θ_p1, θ_s1. Use the Mohr's circle.

Calculate σ₁, σ₂, τ_{max in-plane} and θ_p1, θ_s1. Use the Mohr's circle.

Click below to show answer. X

Step 1:
Construct Mohr's circle

Step 1:
Construct Mohr's circle

Mohr’s Circle solution step 1

Step 2:
Calculate σ₁, σ₂, τ_{max in-plane} and θ_p1, θ_s1 using Mohr's circle

Step 2:
Calculate σ₁, σ₂, τ_{max in-plane} and θ_p1, θ_s1 using Mohr's circle

Mohr’s Circle solution step 2

Useful formula:

Useful formula:

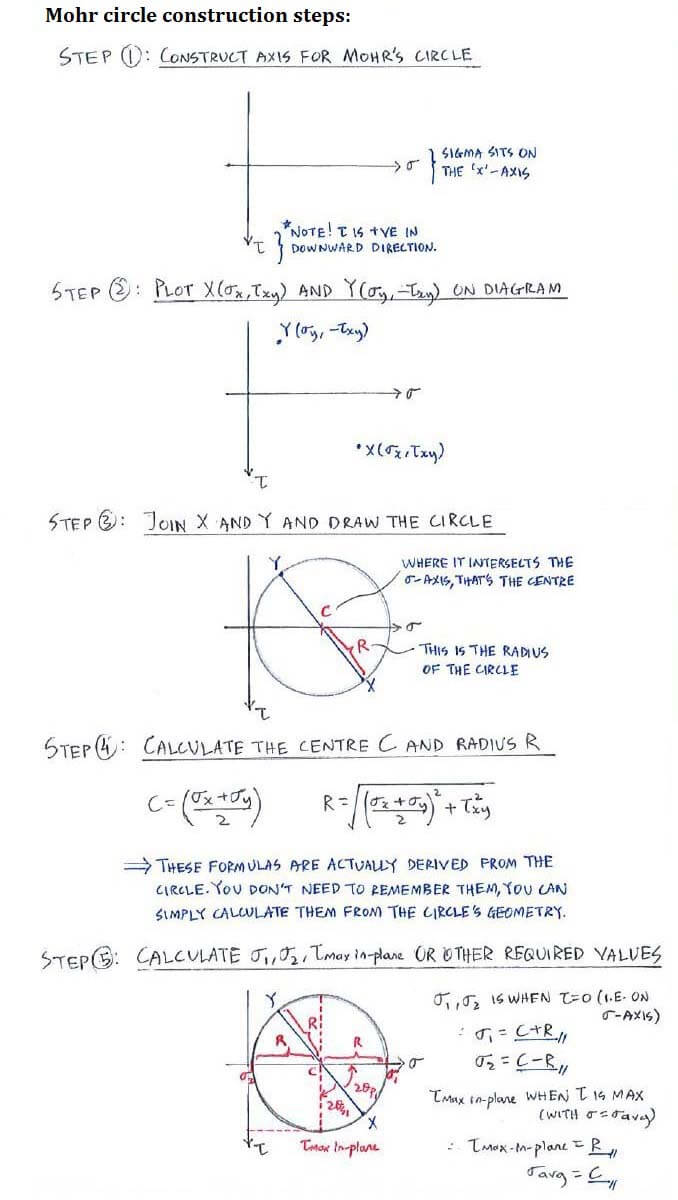

Mohr’s Circle construction steps

Now that you've mastered this question, you can try Question 1.
