C7.4 3D Mohr's Circle and τabs-max

So far we’ve only looked at 2D plane-stress scenarios, but in the real world stresses act in a 3D manner, with a general state-of-stress that looks like:

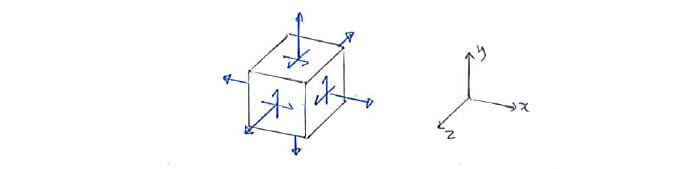

stress element with 3D state-of-stress

The full-blown transformation for this scenario is not within the scope of this course (phew…). But we will be looking at a simple 3D scenario: zero-stress in the 3rd direction:

C7.4 3D Mohr's Circle and τabs-max

So far we’ve only looked at 2D plane-stress scenarios, but in the real world stresses act in a 3D manner, with a general state-of-stress that looks like:


stress element with 3D state-of-stress

The full-blown transformation for this scenario is not within the scope of this course (phew…). But we will be looking at a simple 3D scenario: zero-stress in the 3rd direction:

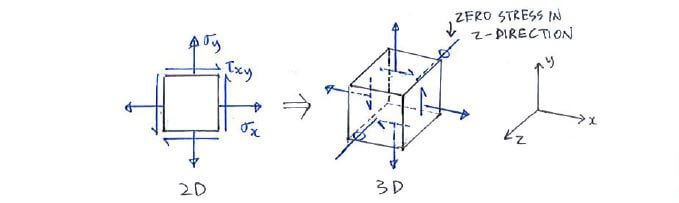

3D stress element with zero z-stress

In this case, all we have to do is to add a 3rd point of Z(0,0) in our existing 2D Mohr’s circle. We then draw our 3D Mohr’s circle which allows us to calculate our absolute maximum shear stress τabs-max.

Here’s some possible configurations of our 3D Mohr’s circle:

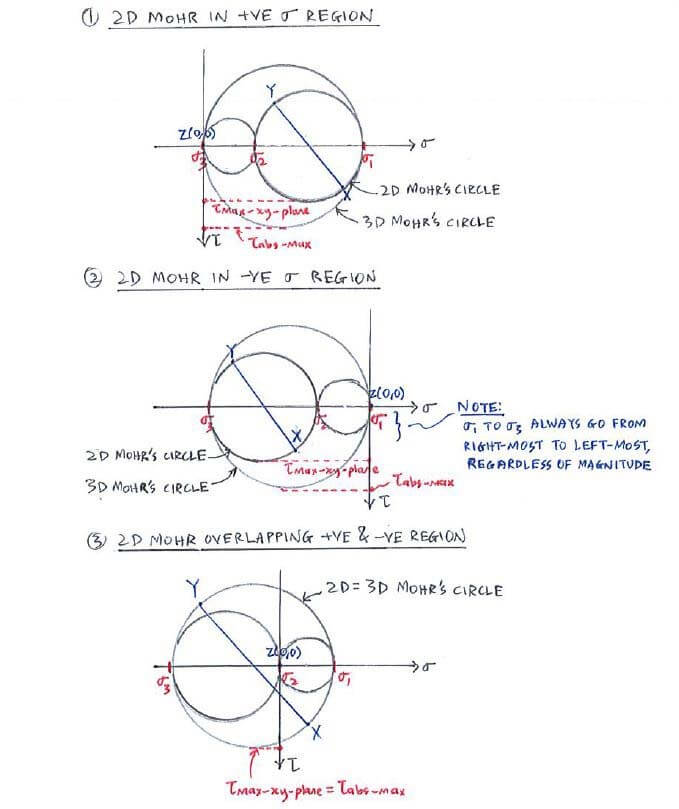

3D Mohr's circle configurations

Doesn’t seem too difficult to draw does it? Let’s look at an example now.

3D stress element with zero z-stress

In this case, all we have to do is to add a 3rd point of Z(0,0) in our existing 2D Mohr’s circle. We then draw our 3D Mohr’s circle which allows us to calculate our absolute maximum shear stress τabs-max.

Here’s some possible configurations of our 3D Mohr’s circle:


3D Mohr's circle configurations

Doesn’t seem too difficult to draw does it? Let’s look at an example now.
