Question 2

Question 2

Generalised Hooke’s Law question 2

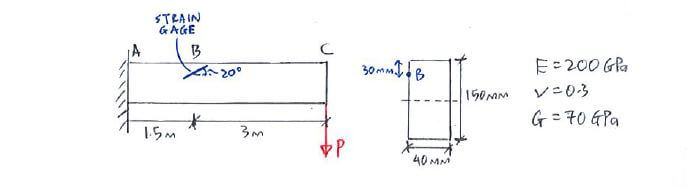

A strain gauge is placed at B is inclined 20^o from the horizontal. If the reading on the strain gauge is 350 με, determine the force P acting on the cantilevered beam.

A strain gauge is placed at B is inclined 20^o from the horizontal. If the reading on the strain gauge is 350 με, determine the force P acting on the cantilevered beam.

Click below to show answer. X

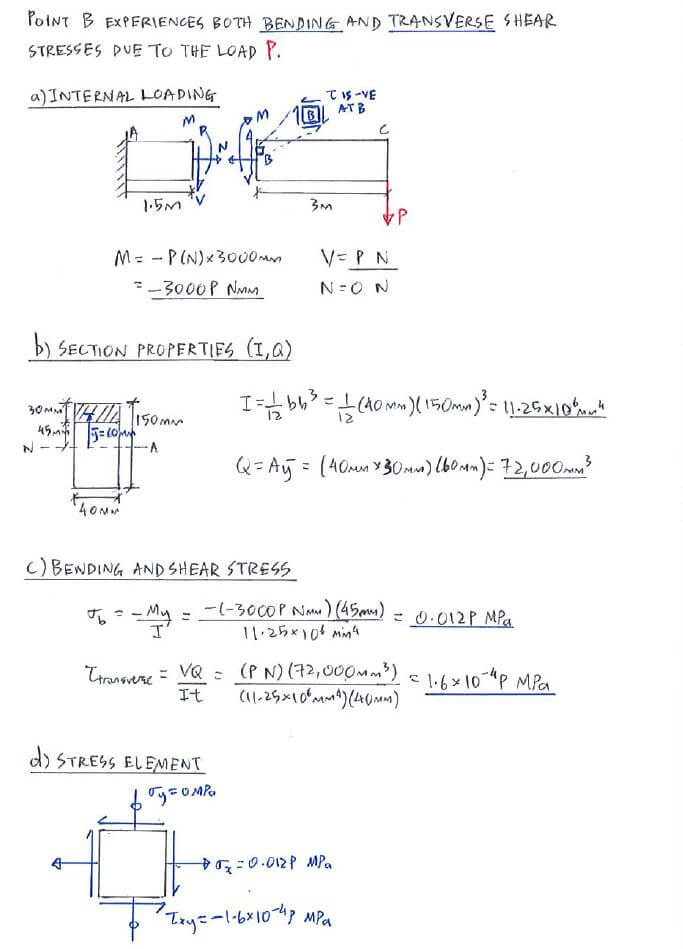

Step 1:
Calculate stresses at point B (in terms of P)

Step 1:
Calculate stresses at point B (in terms of P)

Generalised Hooke’s Law solution step 1

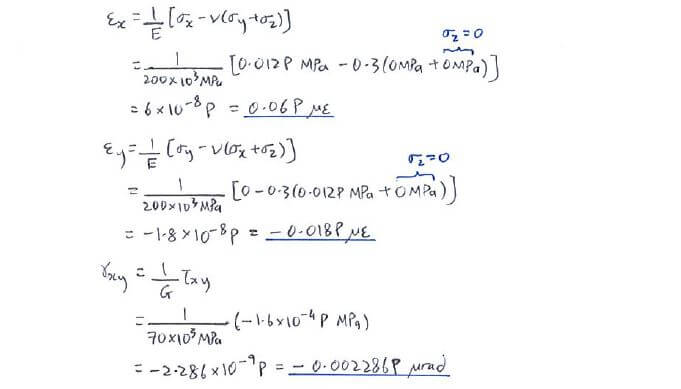

Step 2:
Use Hooke's law to convert σ_x, σ_y, τ_xy to ε_x, ε_y, γ_xy

Step 2:
Use Hooke's law to convert σ_x, σ_y, τ_xy to ε_x, ε_y, γ_xy

Generalised Hooke’s Law solution step 2

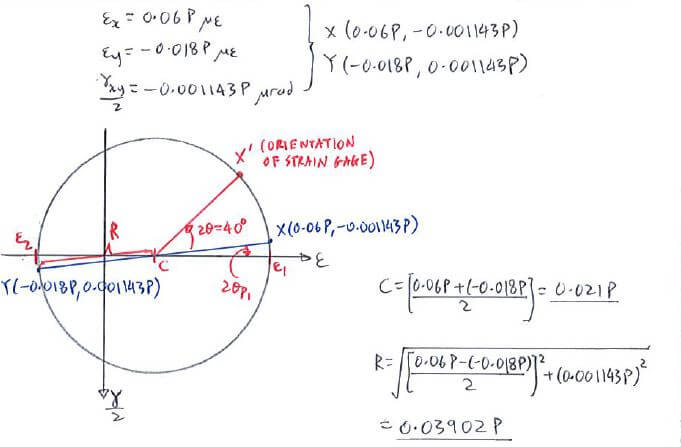

Step 3:
Construct 2D Mohr's circle using ε_x, ε_y, γ_xy

Step 3:
Construct 2D Mohr's circle using ε_x, ε_y, γ_xy

Generalised Hooke’s Law solution step 3

Step 4:
Find P by getting strain value at θ = 20^o (CCW) from Mohr's circle

Step 4:
Find P by getting strain value at θ = 20^o (CCW) from Mohr's circle

Generalised Hooke’s Law solution step 4

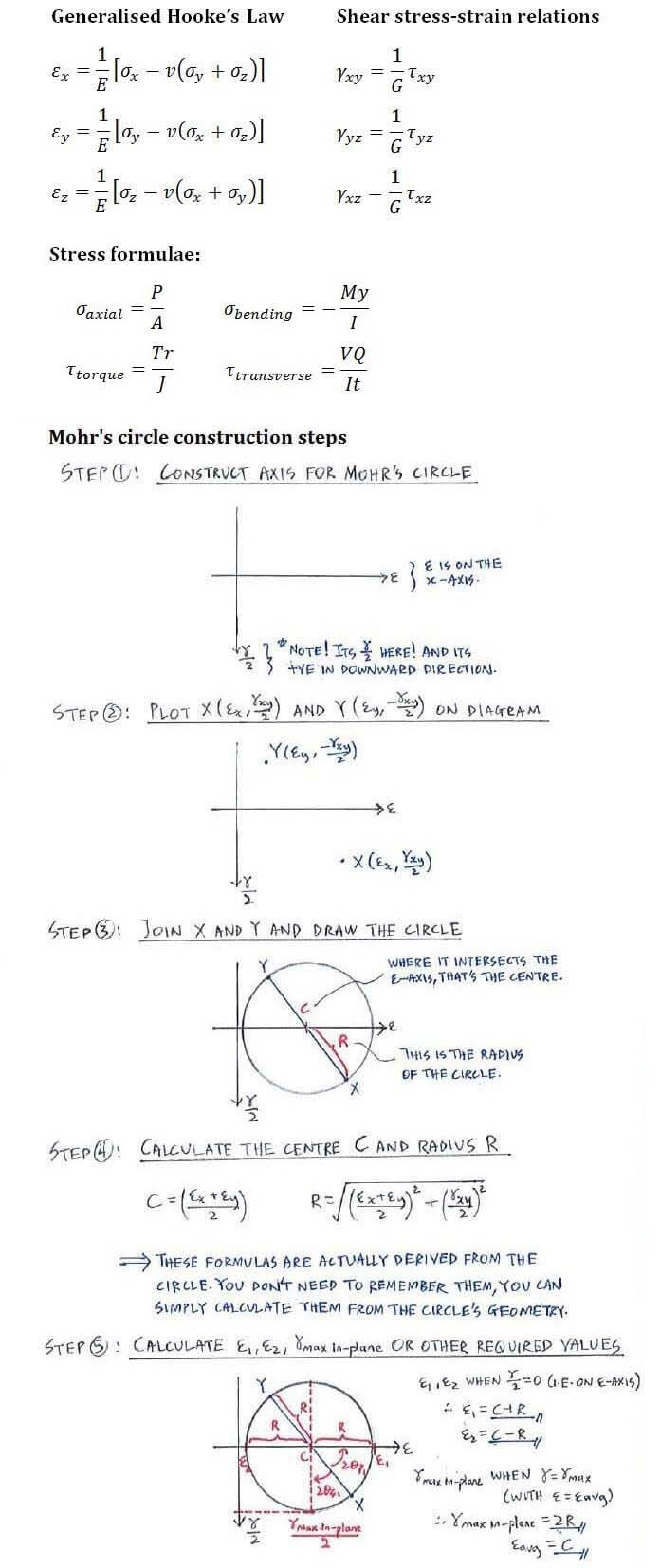

Useful formula:

Useful formula:

Generalised Hooke’s Law formula

Congratulations! You've completed all the questions in this topic. Let's look at C8.4: Theories of Failure now.
