Theories of Failure example question

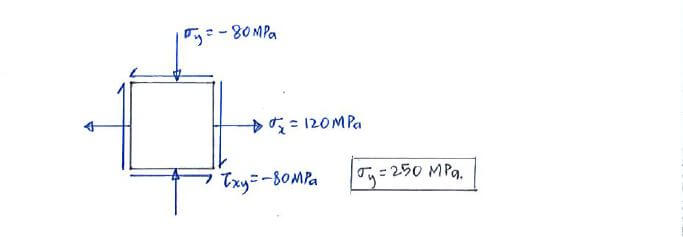

Determine if the element under the state-of-stress above experiences failure, under the Tresca and von-Mises criteria.

Determine if the element under the state-of-stress above experiences failure, under the Tresca and von-Mises criteria.

Click below to show answer. X

Step 1:

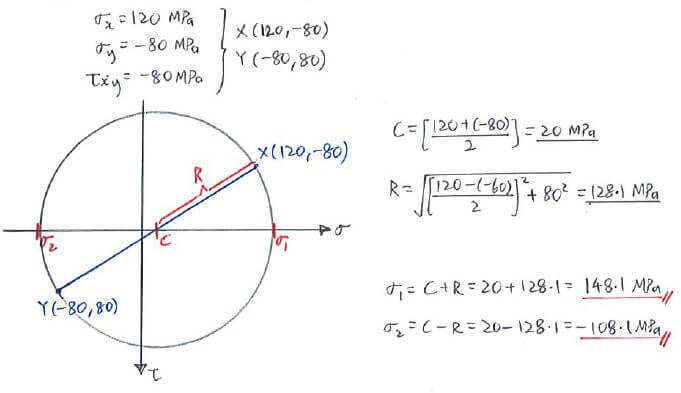

Construct 2D Mohr's circle, calculate σ₁, σ₂

Step 1:
Construct 2D Mohr's circle, calculate σ₁, σ₂

Theories of Failure solution step 1

Step 2:

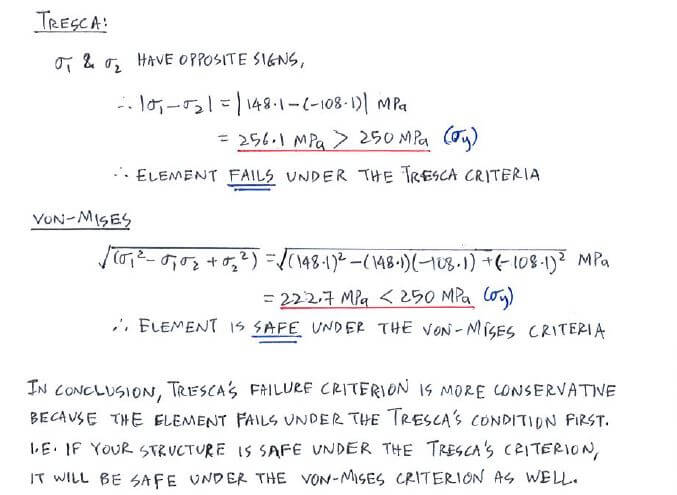

Apply the Tresca and von-Mises failure criteria

Step 2:
Apply the Tresca and von-Mises failure criteria

Theories of Failure solution step 2

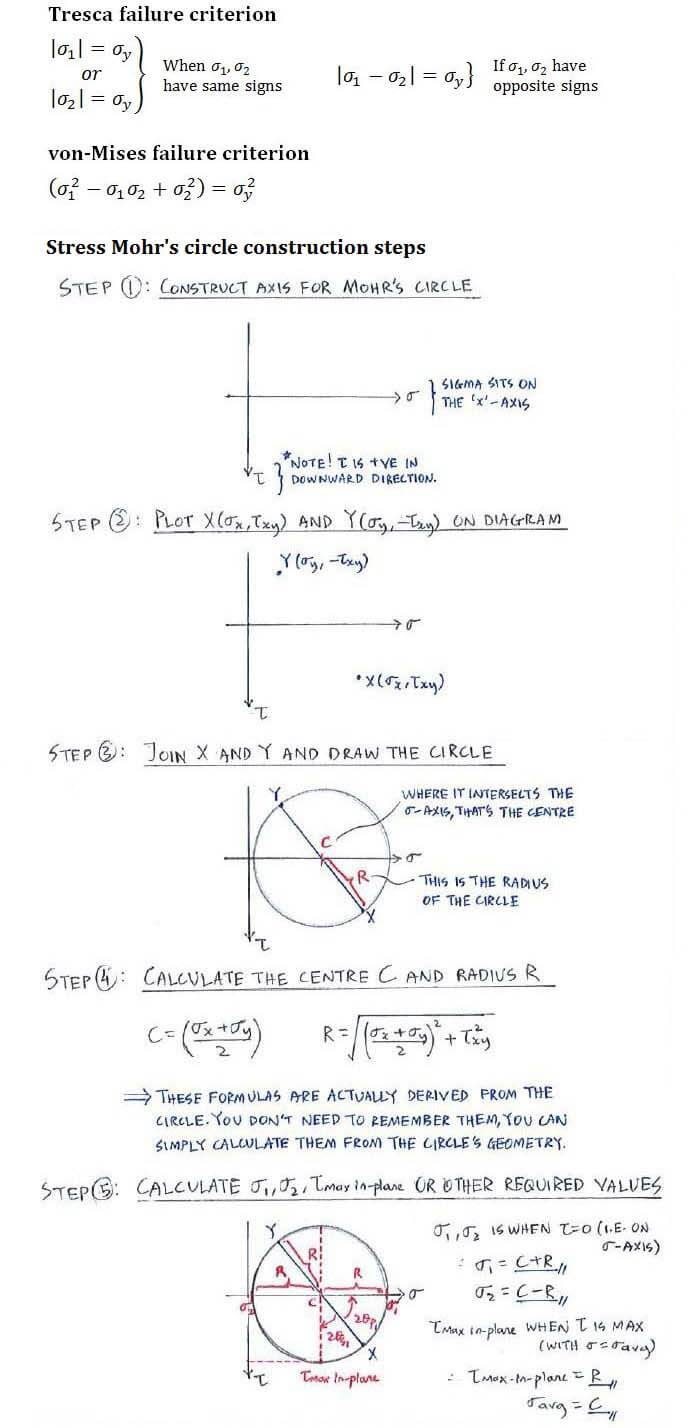

Useful formula:

Useful formula:

Theories of Failure formula

Now that you've mastered this question, you can try Question 1.
