Identify redundant supports and setup compability equations for displacement and slope

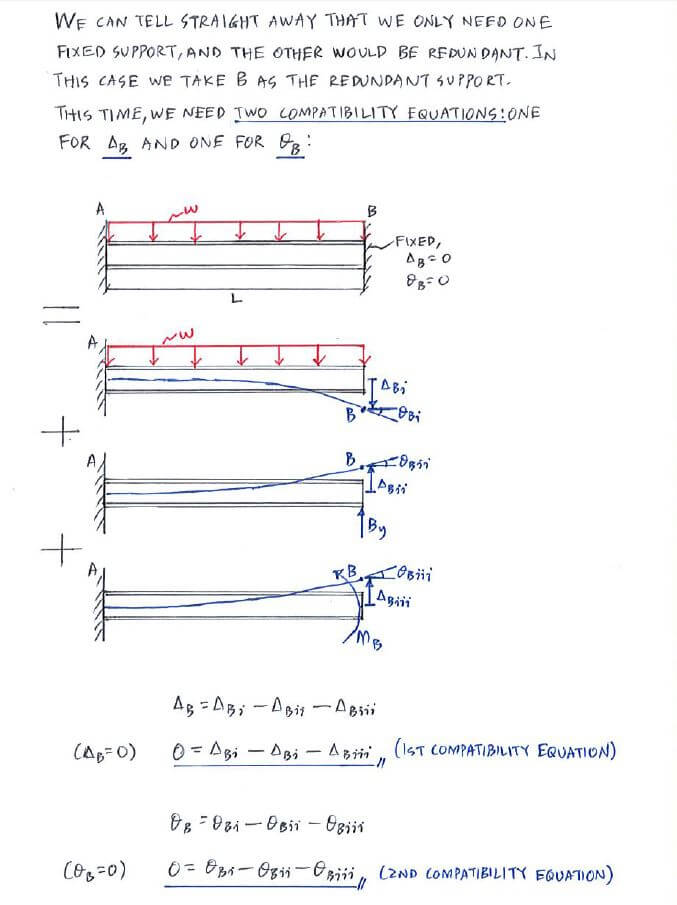

Step 1:
Identify redundant supports and setup compability equations for displacement and slope

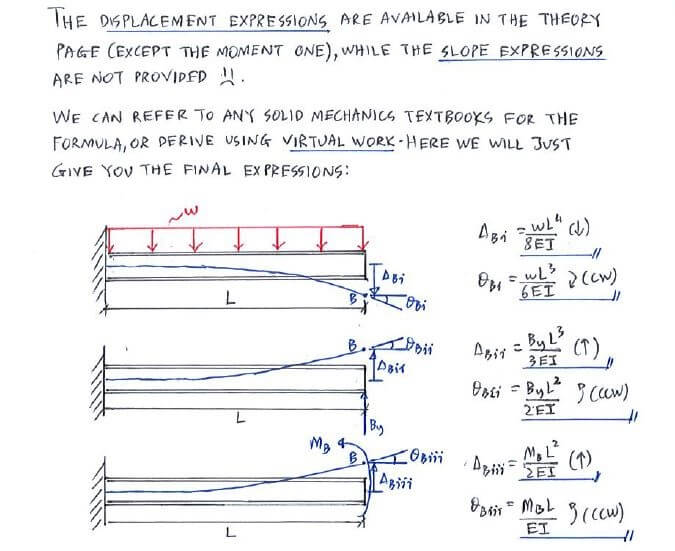

Step 2:
Obtain expressions for each displacement and slope in both compability equations
Step 2:
Obtain expressions for each displacement and slope in both compability equations

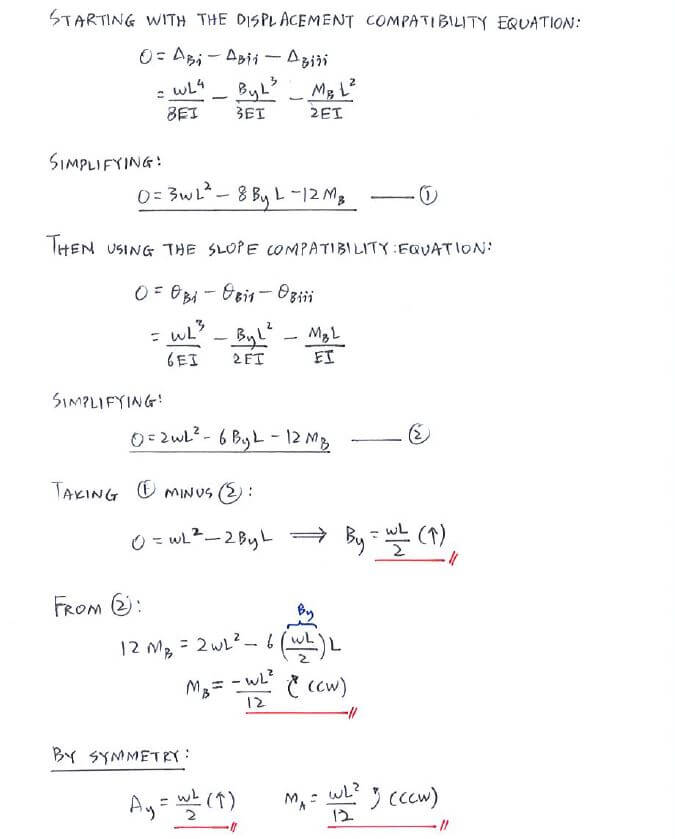

Step 3:
Solve for reactions at A and B using compability equations
Step 3:
Solve for reactions at A and B using compability equations

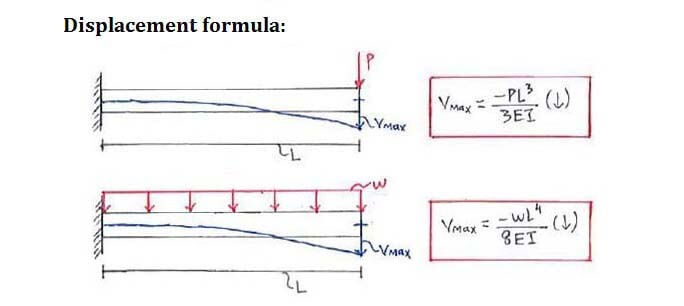

Useful formula:
Useful formula:
Congratulations! You've completed all the questions in this topic. That's it for Solid Mechanics II! You can try revising some of the older topics in Solid Mechanics I.
