Example Question

Example Question

Free-Body Diagram (FBD) and Supports example question

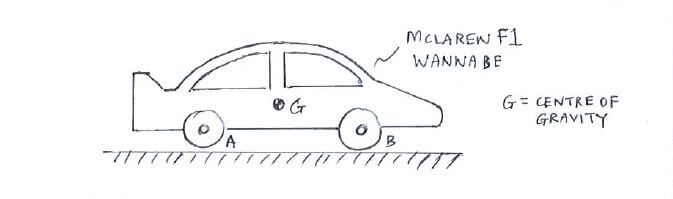

Draw the FBD of:

the car
the rear wheel

Draw the FBD of:

the car
the rear wheel

Click below to show answer. X

Step 1:

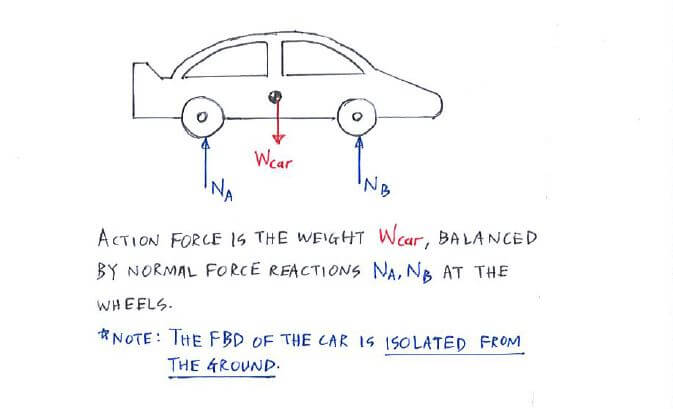

Draw FBD of the car

Step 1:
Draw FBD of the car

Free-Body Diagram (FBD) and Supports solution step 1

Step 2:

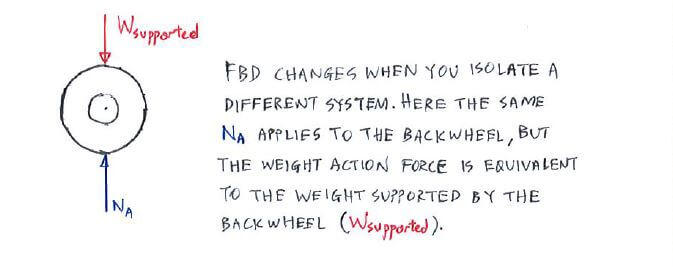

Draw FBD of the rear wheel

Step 2:
Draw FBD of the rear wheel

Free-Body Diagram (FBD) and Supports solution step 2

Now that you've mastered this question, you can try Question 1.
