Question 2

Question 2

Free-Body Diagram (FBD) and Supports question 2

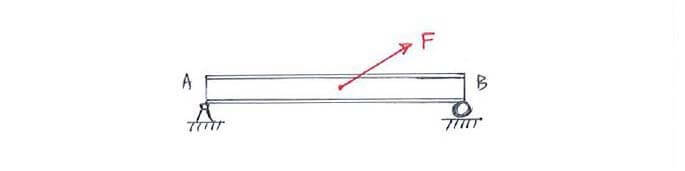

Draw the FBD of the beam. Assume that the beam is weightless.

Draw the FBD of the beam. Assume that the beam is weightless.

Click below to show answer. X

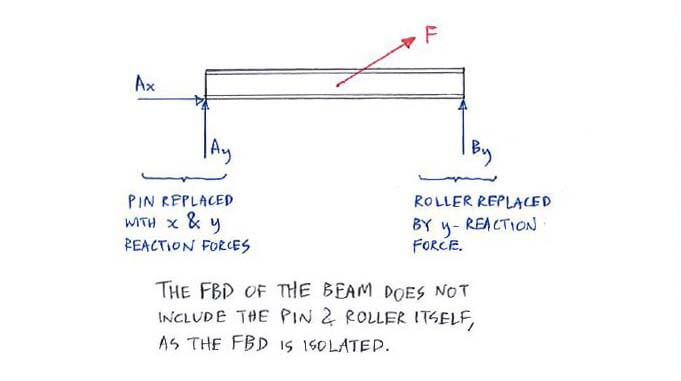

Step 1:
Draw FBD of the beam, replacing supports with reaction forces

Step 1:
Draw FBD of the beam, replacing supports with reaction forces

Free-Body Diagram (FBD) and Supports solution step 1

Now that you've mastered this question, you can try Question 3.
