Beams – Internal Forces question 1

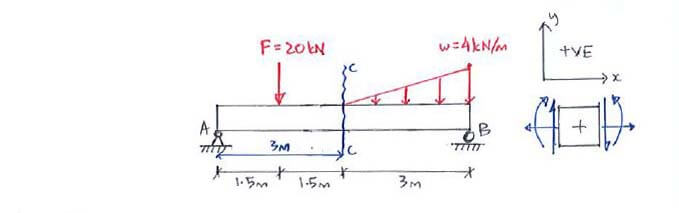

Find the internal forces at the section cut C-C.

Find the internal forces at the section cut C-C.

Click below to show answer. X

Step 1:
Draw FBD of beam and replace distributed load with equivalent force

Step 1:
Draw FBD of beam and replace distributed load with equivalent force

Beams – Internal Forces solution step 1

Step 2:
Solve for reactions using equations of equilibrium

Step 2:
Solve for reactions using equations of equilibrium

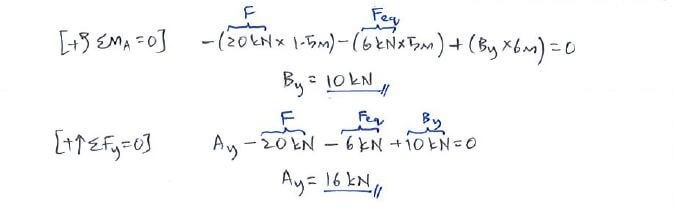

Beams – Internal Forces solution step 2

Step 3:
Draw FBD for section cut

Step 3:
Draw FBD for section cut

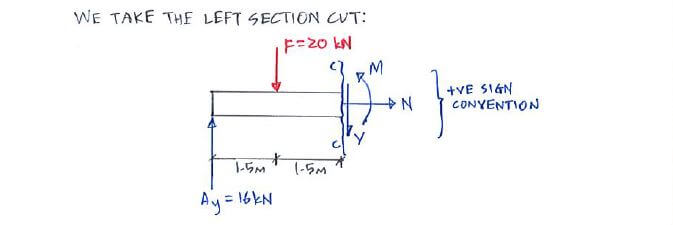

Beams – Internal Forces solution step 3

Step 4:
Solve for internal forces using equations of equilibrium

Step 4:
Solve for internal forces using equations of equilibrium

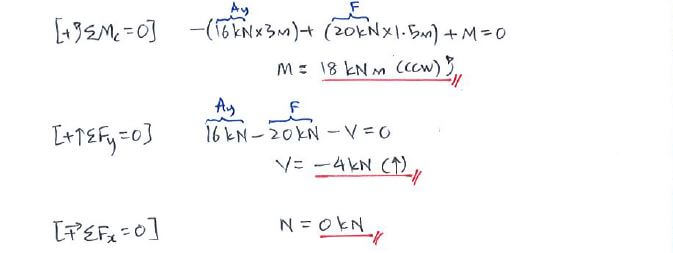

Beams – Internal Forces solution step 4

Useful formula:

Useful formula:

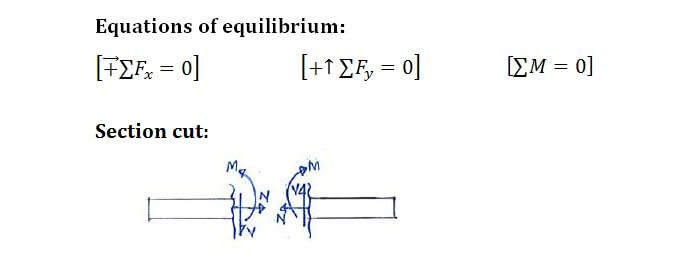

Beams – Internal Forces formula
