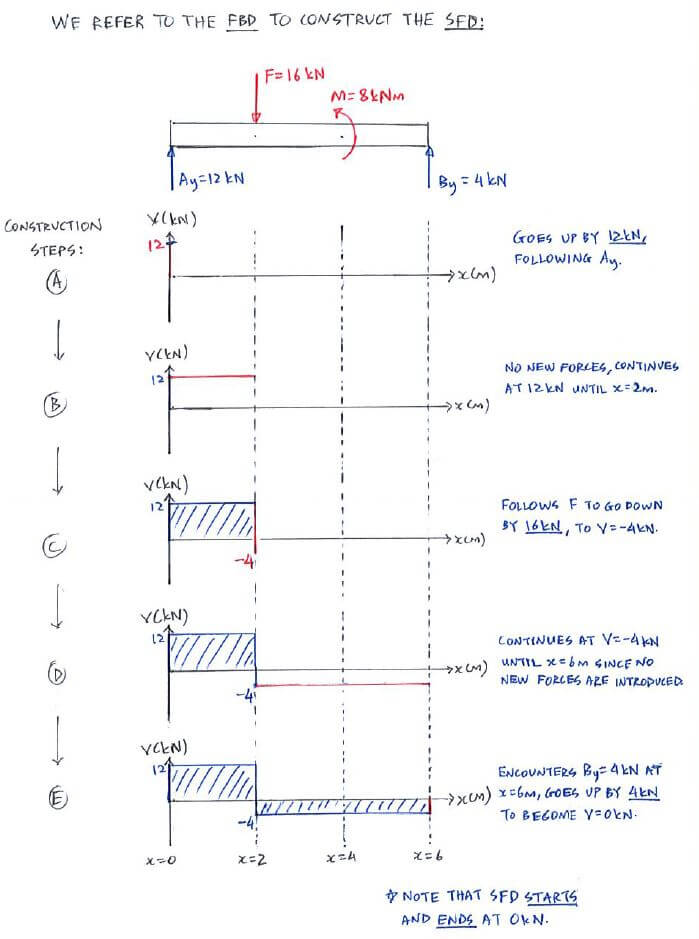

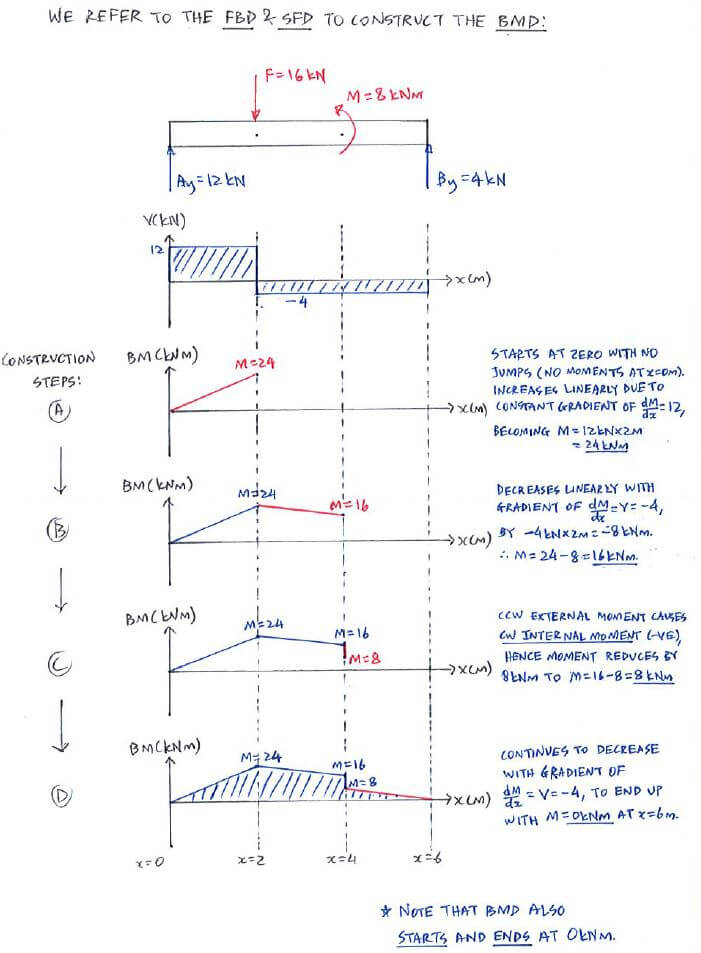

Draw the shear force and bending moment diagrams for beam AB using the direct method.
>> Here we give you the FBD directly as we want to emphasize on teaching you the direct method to construct SF & BM diagrams.
Draw the shear force and bending moment diagrams for beam AB using the direct method.
>> Here we give you the FBD directly as we want to emphasize on teaching you the direct method to construct SF & BM diagrams.
