Question 2

Question 2

Unsymmetric Bending question 2

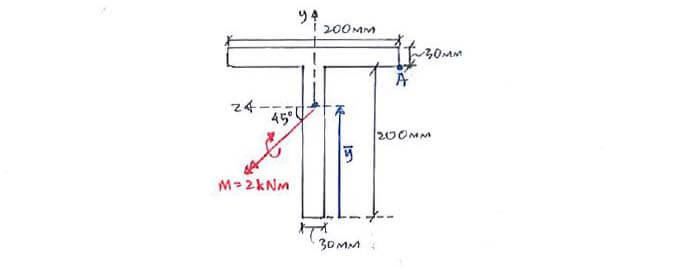

Find the bending stress developed at point A.

Find the bending stress developed at point A.

Click below to show answer. X

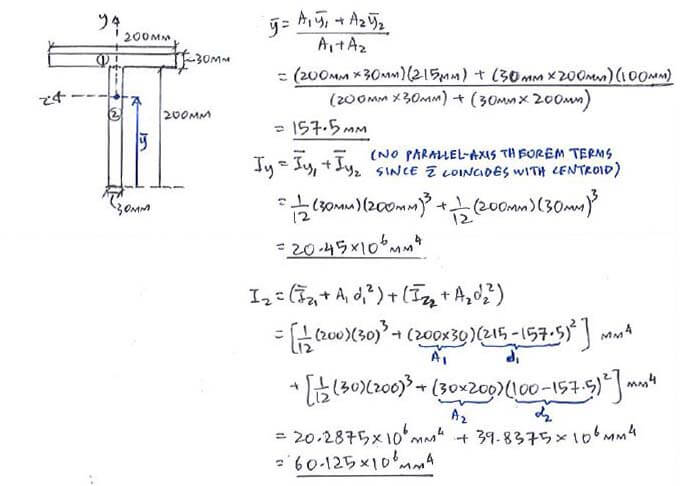

Step 1:
Calculate section properties (ȳ, I_y, I_z)

Step 1:
Calculate section properties (ȳ, I_y, I_z)

Unsymmetric Bending solution step 1

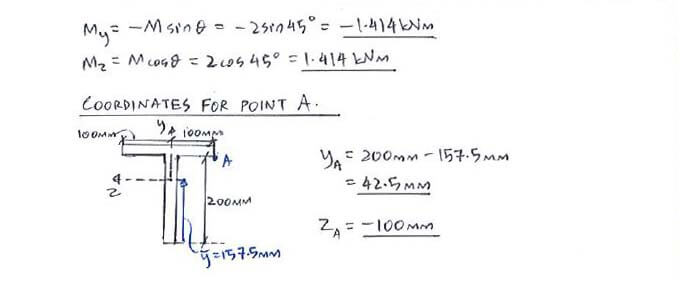

Step 2:
Determine M_y, M_z and coordinates y, z

Step 2:
Determine M_y, M_z and coordinates y, z

Unsymmetric Bending solution step 2

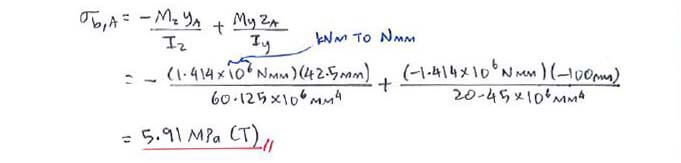

Step 3:
Calculate bending stress at A

Step 3:
Calculate bending stress at A

Unsymmetric Bending solution step 3

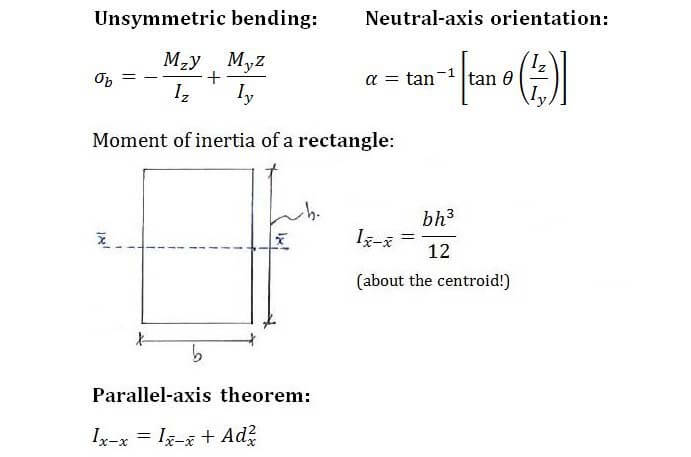

Useful formula:

Useful formula:

Unsymmetric Bending formula

Congratulations! You've completed all the questions in this topic. Let's look at C2.2: Composite Beams now.
