Question 2

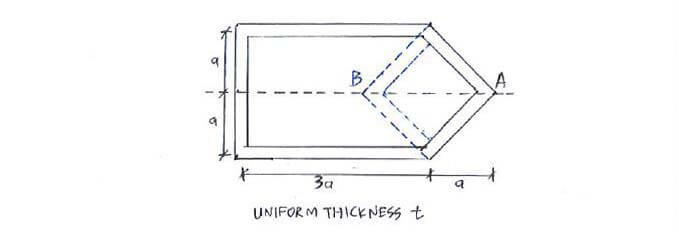

The figure above shows two possible configurations for a thin-wall section, with A having the triangle pointing outwards and B having the triangle pointing inwards. Determine the percentage strength reduction for configuration B compared to A.

Click below to show answer. X

Step 1:
Calculate mean enclosed area A_m

Step 1:
Calculate mean enclosed area A_m

Thin-Walled Tubes with Closed Cross-Sections solution step 1

Step 2:
Determine the % strength reduction

Step 2:
Determine the % strength reduction

Thin-Walled Tubes with Closed Cross-Sections solution step 2

Useful formula:

Useful formula:

Thin-Walled Tubes with Closed Cross-Sections formula
