Euler’s Buckling Formula example question

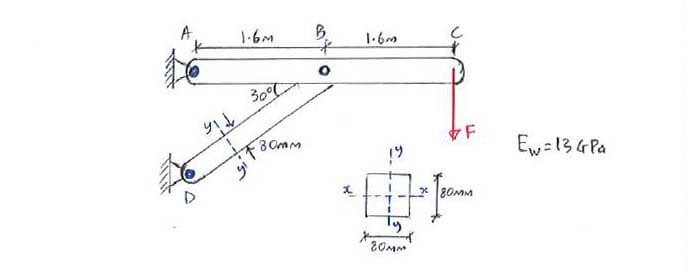

Determine the maximum force F that can be applied to prevent buckling in member BD.

Determine the maximum force F that can be applied to prevent buckling in member BD.

Click below to show answer. X

Step 1:

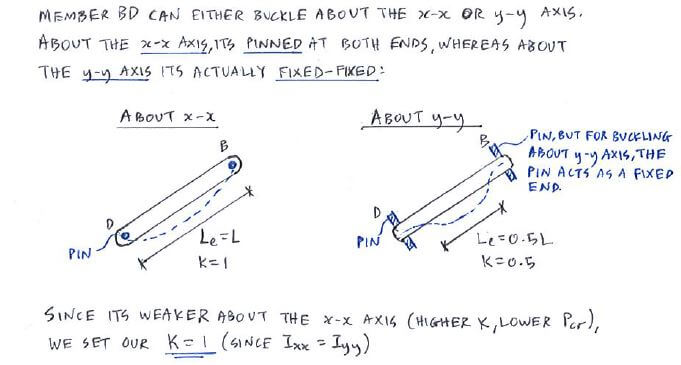

Determine direction of buckling and effective length factor K

Step 1:
Determine direction of buckling and effective length factor K

Euler’s Buckling Formula solution step 1

Step 2:

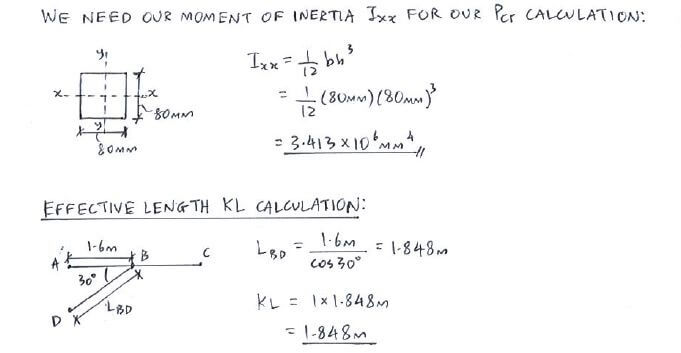

Calculate I_xx and effective length KL

Step 2:
Calculate I_xx and effective length KL

Euler’s Buckling Formula solution step 2

Step 3:
Calculate F_max from P_cr

Step 3:
Calculate F_max from P_cr

Euler’s Buckling Formula solution step 3

Useful formula:

Useful formula:

Euler’s Buckling Formula formula

Now that you've mastered this question, you can try Question 1.
