Question 1

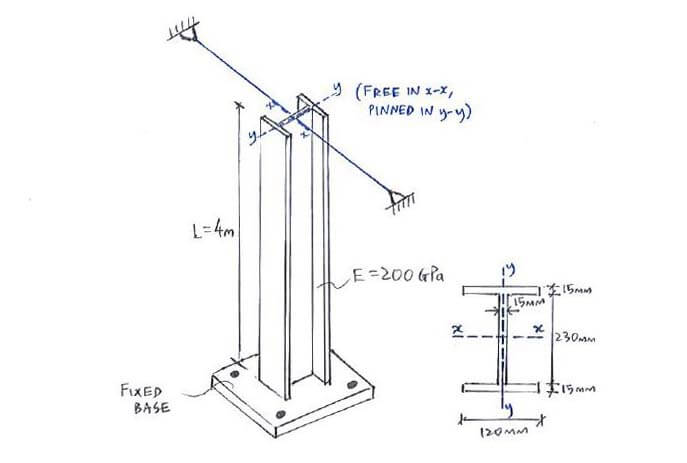

The I-section column above is fixed at its base. Its top is tied to 2 tension cables, and can be assumed to be pinned about the y-y axis and free about the x-x axis. Determine the critical buckling load P_cr.

Click below to show answer. X

Step 1:
Determine direction of buckling and effective length factor K

Step 1:
Determine direction of buckling and effective length factor K

Euler’s Buckling Formula solution step 1

Step 2:
Calculate I and KL for both x-x and y-y axes

Step 2:
Calculate I and KL for both x-x and y-y axes

Euler’s Buckling Formula solution step 2

Step 3:
Calculate P_cr

Step 3:
Calculate P_cr

Euler’s Buckling Formula solution step 3

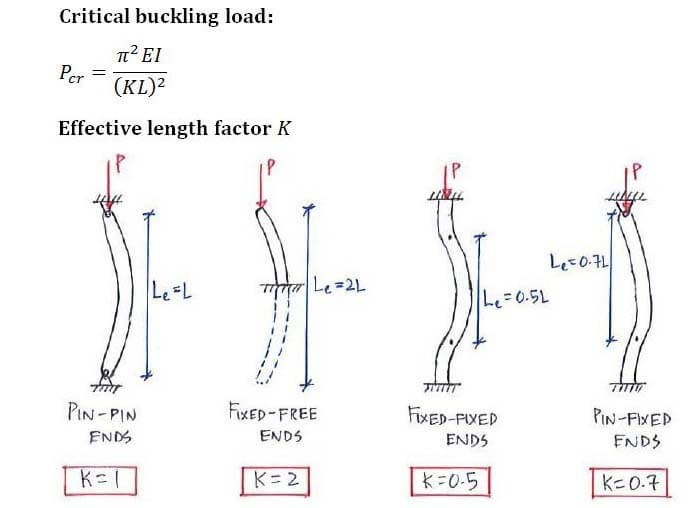

Useful formula:

Useful formula:

Now that you've mastered this question, you can try Question 2.
