Question 2

Question 2

Euler’s Buckling Formula question 2

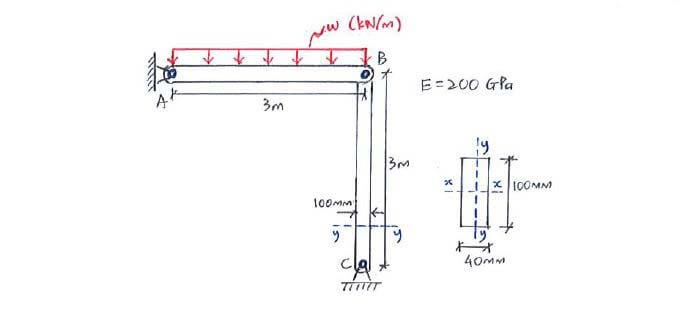

Find the maximum distributed load w that can be applied to prevent buckling in column BC. Use a safety factor of F.S. = 2 for buckling.

Find the maximum distributed load w that can be applied to prevent buckling in column BC. Use a safety factor of F.S. = 2 for buckling.

Click below to show answer. X

Step 1:
Determine direction of buckling and effective length factor K

Step 1:
Determine direction of buckling and effective length factor K

Euler’s Buckling Formula solution step 1

Step 2:
Calculate I and KL for both x-x and y-y axes

Step 2:
Calculate I and KL for both x-x and y-y axes

Euler’s Buckling Formula solution step 2

Step 3:
Find max. w (with F.S. = 2 for P_cr)

Step 3:
Find max. w (with F.S. = 2 for P_cr)

Euler’s Buckling Formula solution step 3

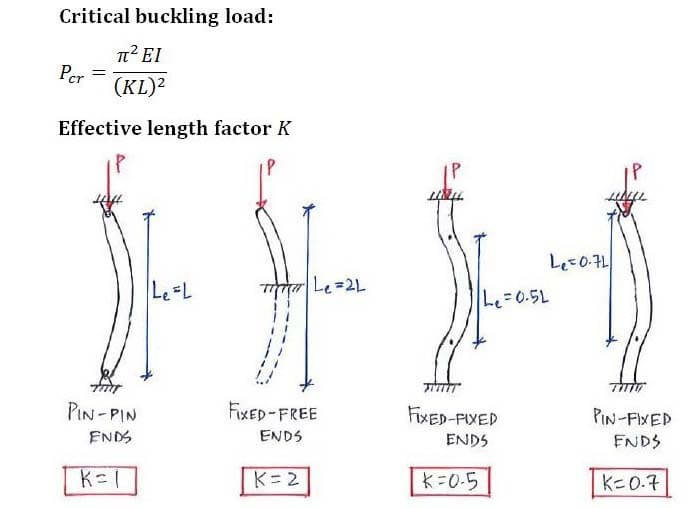

Useful formula:

Useful formula:

Euler’s Buckling Formula formula

Congratulations! You've completed all the questions in this topic. Let's look at C5.2: Secant Formula now.
