Example Question

Example Question

example question

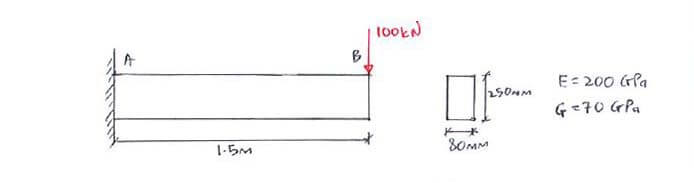

Calculate the shear and bending strain energy in beam AB. Use ƒ_s = 6/5 for the shear strain energy.

Calculate the shear and bending strain energy in beam AB. Use ƒ_s = 6/5 for the shear strain energy.

Click below to show answer. X

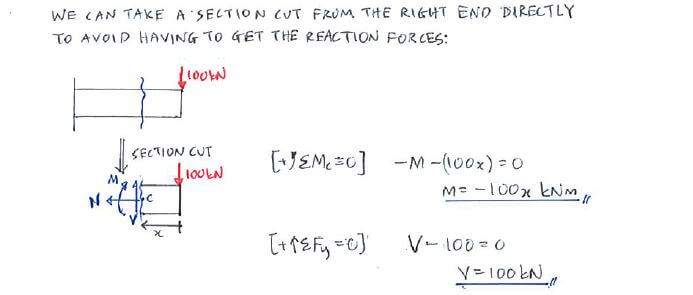

Step 1:
Calculate internal forces V and M

Step 1:
Calculate internal forces V and M

Elastic Strain Energy for Various Loadings Elastic Strain Energy for Various Loadings solution step 1

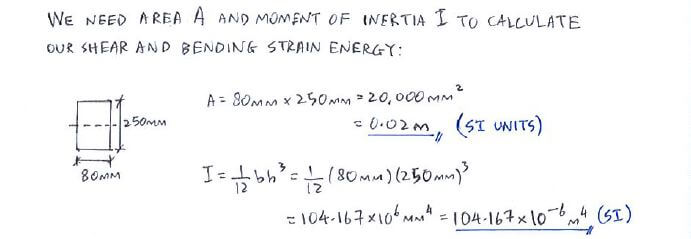

Step 2:
Calculate section properties (A, I)

Step 2:
Calculate section properties (A, I)

Elastic Strain Energy for Various Loadings solution step 2

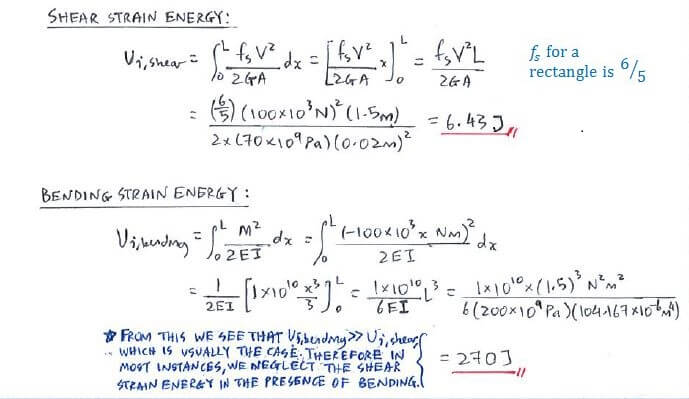

Step 3:
Calculate shear and bending strain energy

Step 3:
Calculate shear and bending strain energy

Elastic Strain Energy for Various Loadings solution step 3

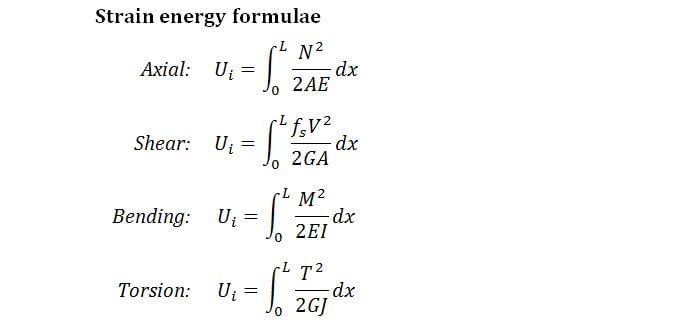

Useful formula:

Useful formula:

Elastic Strain Energy for Various Loadings formula

Congratulations! You've completed all the questions in this topic. Let's look at C6.2: Conservation of Energy now.
