Conservation of Energy question 3

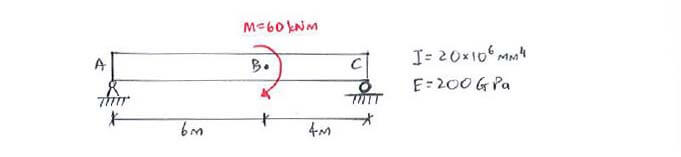

Find the slope at point B (θ_B). Neglect the strain energy due to shear.

Find the slope at point B (θ_B). Neglect the strain energy due to shear.

Click below to show answer. X

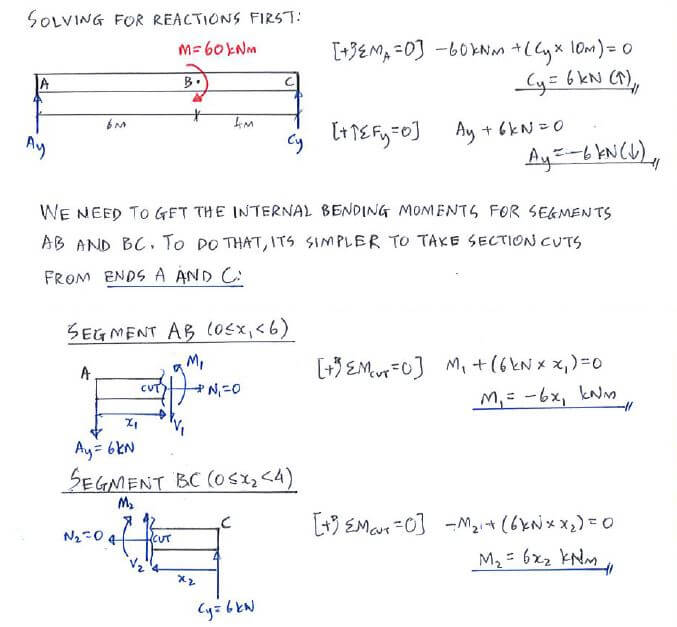

Step 1:
Calculate internal bending moment for each segment

Step 1:
Calculate internal bending moment for each segment

Conservation of Energy solution step 1

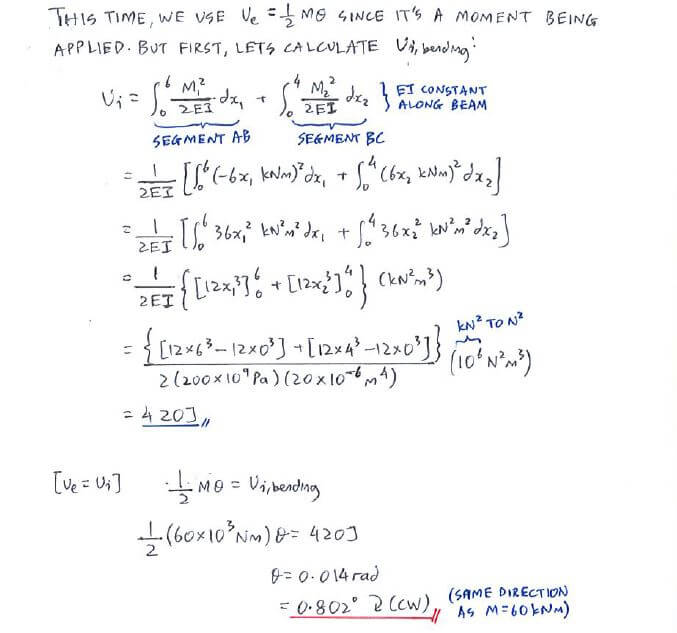

Step 2:
U_e = U_i to calculate θ_B

Step 2:
U_e = U_i to calculate θ_B

Conservation of Energy solution step 2

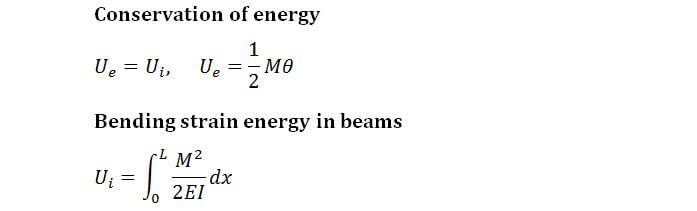

Useful formula:

Useful formula:

Conservation of Energy formula

Congratulations! You've completed all the questions in this topic. Let's look at C6.3: Virtual Work now.
