Question 1

Question 1

Virtual Work question 1

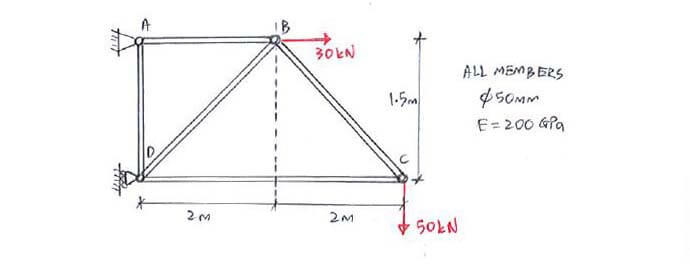

The truss above is made from tubular members with a diameter of 50 mm. Calculate the horizontal displacement of point B (Δ_B →).

The truss above is made from tubular members with a diameter of 50 mm. Calculate the horizontal displacement of point B (Δ_B →).

Click below to show answer. X

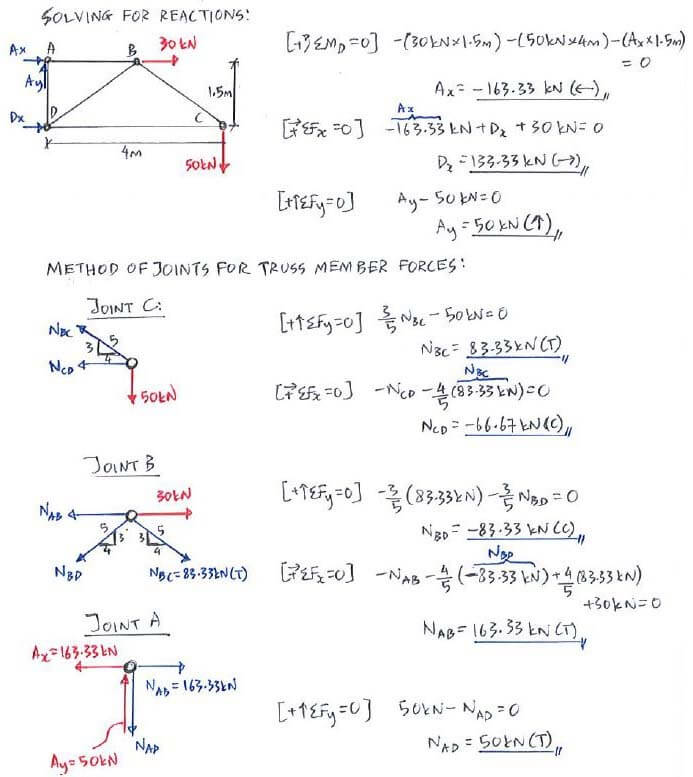

Step 1:
Calculate internal forces in truss members due to real external load

Step 1:
Calculate internal forces in truss members due to real external load

Virtual Work solution step 1

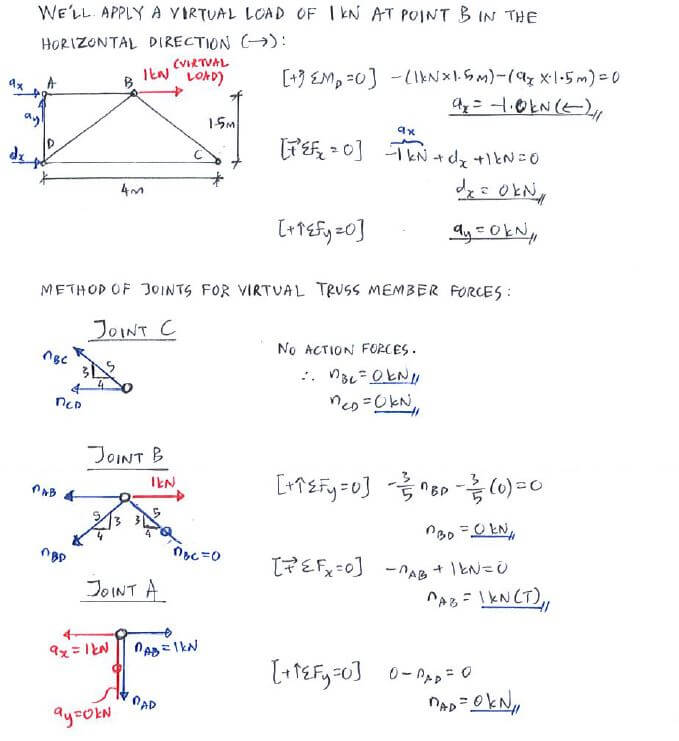

Step 2:
Calculate internal forces in truss members due to virtual load

Step 2:
Calculate internal forces in truss members due to virtual load

Virtual Work solution step 2

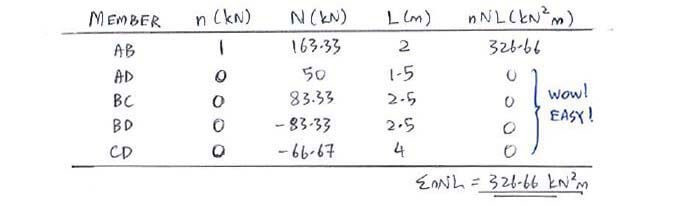

Step 3:
Construct table of n, N, L and nNL for all members

Step 3:
Construct table of n, N, L and nNL for all members

Virtual Work solution step 3

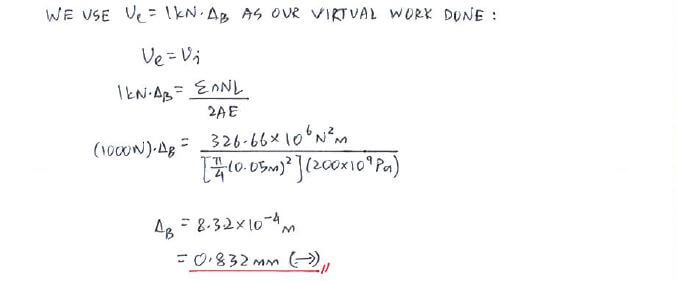

Step 4:
U_e = U_i to calculate Δ_B (→)

Step 4:
U_e = U_i to calculate Δ_B (→)

Virtual Work solution step 4

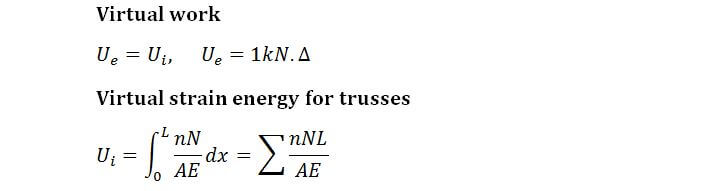

Useful formula:

Useful formula:

Virtual Work formula

Now that you've mastered this question, you can try Question 2.
