Example Question

Example Question

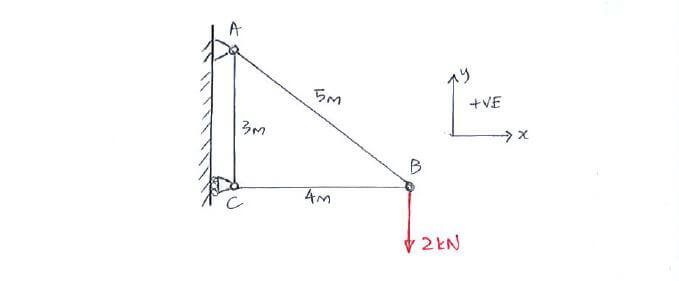

Method of Joints example question

Calculate the force in member BC, F_BC.

Calculate the force in member BC, F_BC.

Click below to show answer. X

Step 1:
Apply method of joints to solve for F_BC

Step 1:
Apply method of joints to solve for F_BC

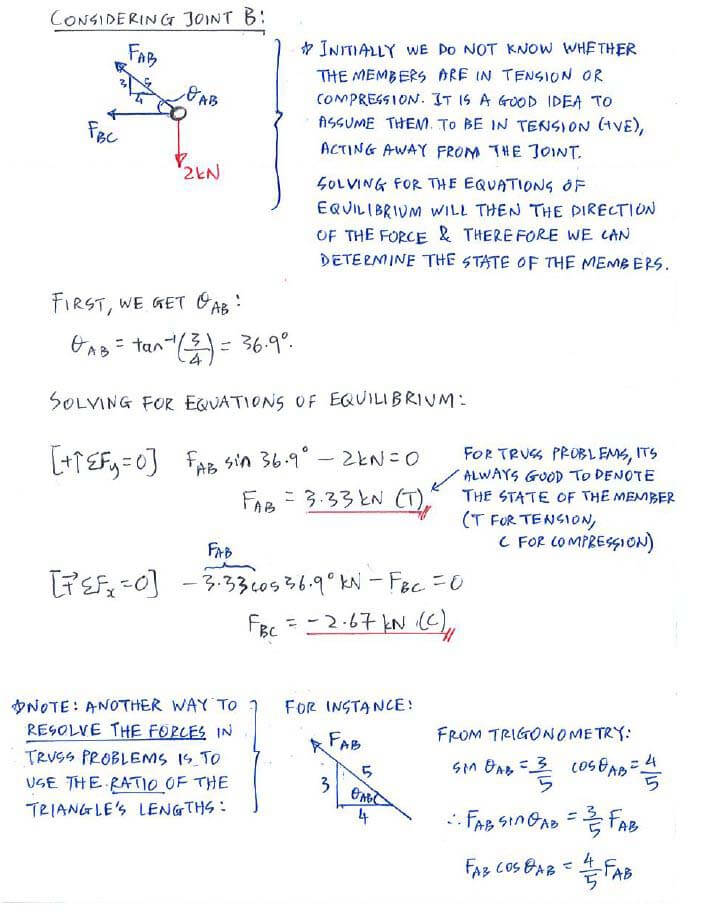

Method of Joints solution step 1

Useful formula:

Useful formula:

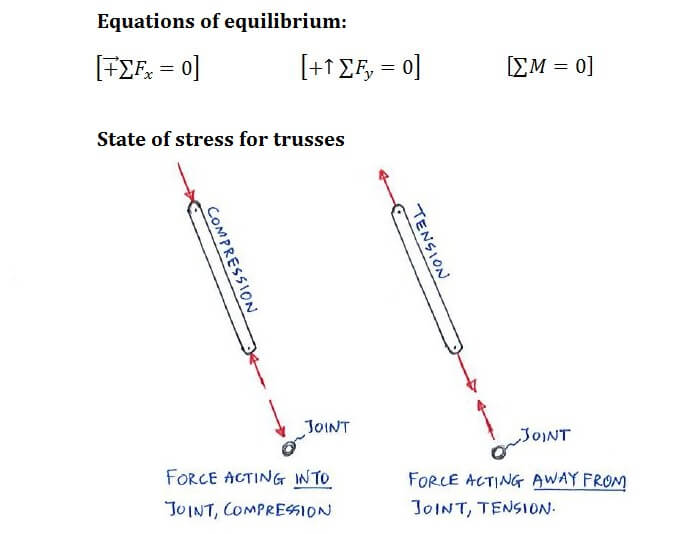

Method of Joints formula

Now that you've mastered this question, you can try Question 1.
