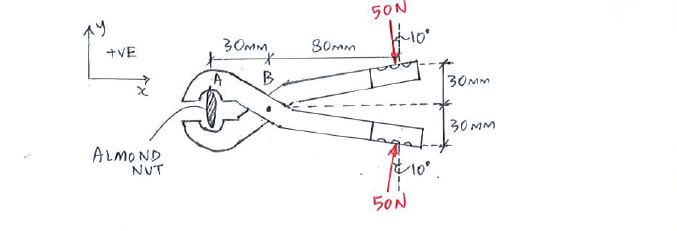

Frames and Machines question 1

You've designed the ultimate almond slicer! Calculate the force acting on almost A, and also the force developed in pin B.

You've designed the ultimate almond slicer! Calculate the force acting on almost A, and also the force developed in pin B.

Click below to show answer. X

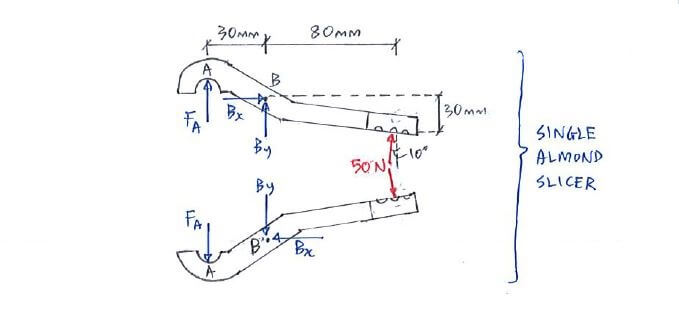

Step 1:
Draw FBD of separate members and add action-reaction pairs

Step 1:
Draw FBD of separate members and add action-reaction pairs

Frames and Machines solution step 1

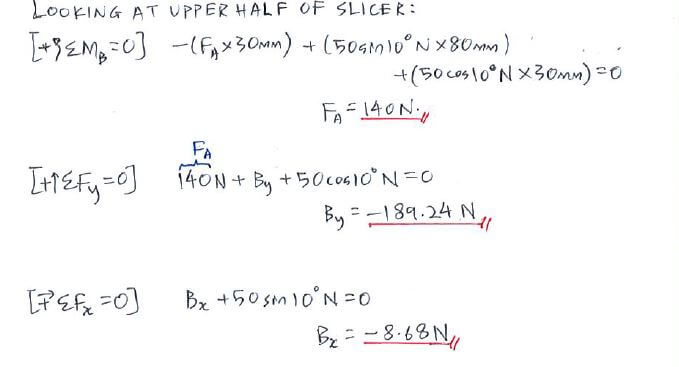

Step 2:
Apply equations of equilibrium to solve for forces

Step 2:
Apply equations of equilibrium to solve for forces

Frames and Machines solution step 2

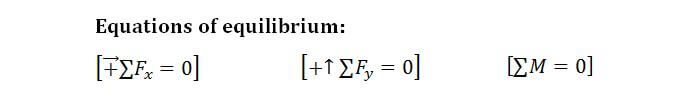

Useful formula:

Useful formula:

Frames and Machines formula

Now that you've mastered this question, you can try Question 2.
