Question 2

Question 2

Frames and Machines question 2

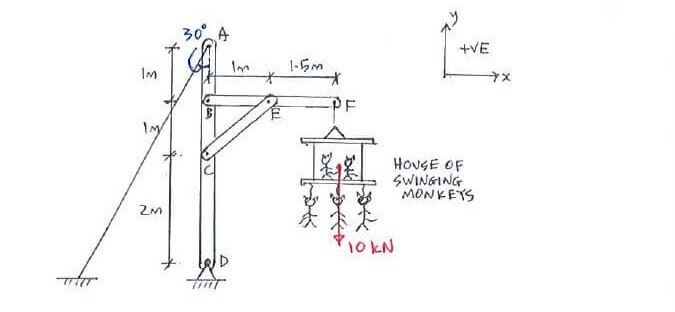

Your love for swinging monkeys has compelled you to build a house for them. Analyse the forces in the pin joints of the frame.

Your love for swinging monkeys has compelled you to build a house for them. Analyse the forces in the pin joints of the frame.

Click below to show answer. X

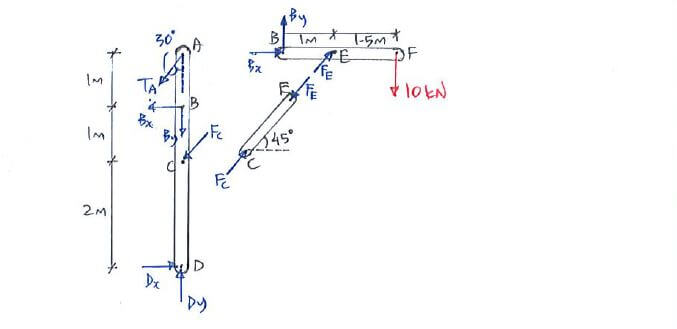

Step 1:
Draw FBD of separate members and add action-reaction pairs

Step 1:
Draw FBD of separate members and add action-reaction pairs

Frames and Machines solution step 1

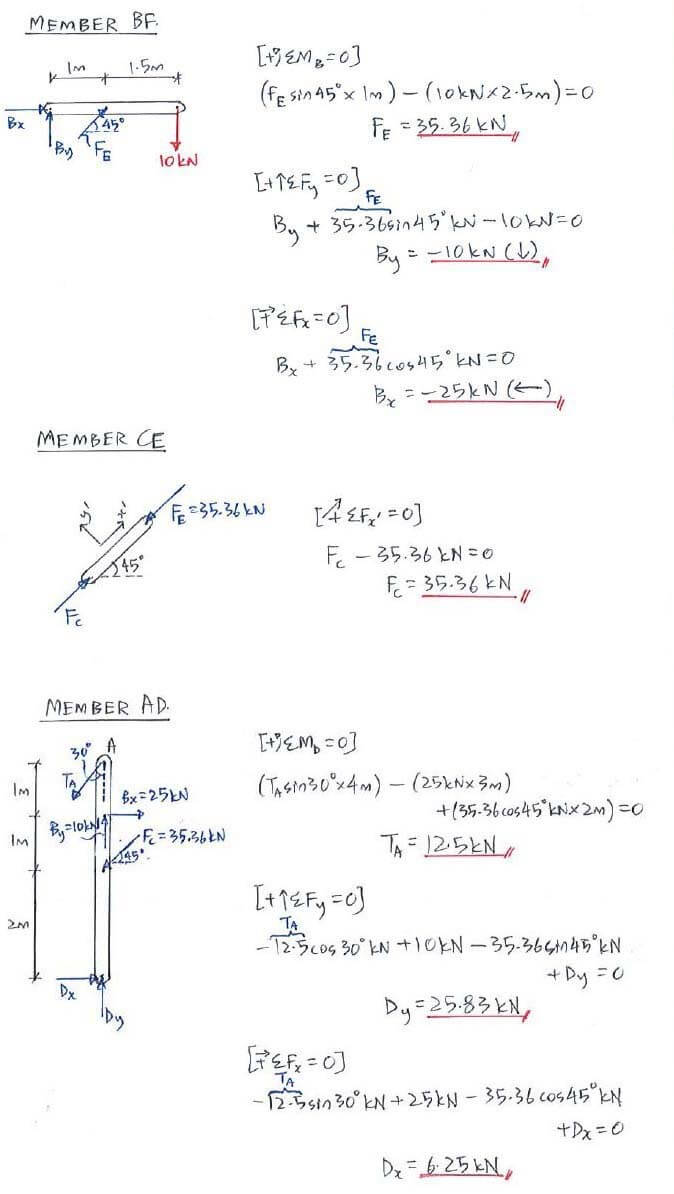

Step 2:
Apply equations of equilibrium to solve for forces

Step 2:
Apply equations of equilibrium to solve for forces

Frames and Machines solution step 2

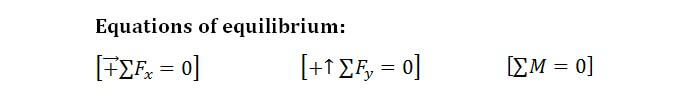

Useful formula:

Useful formula:

Frames and Machines formula
