Method of Sections question 2

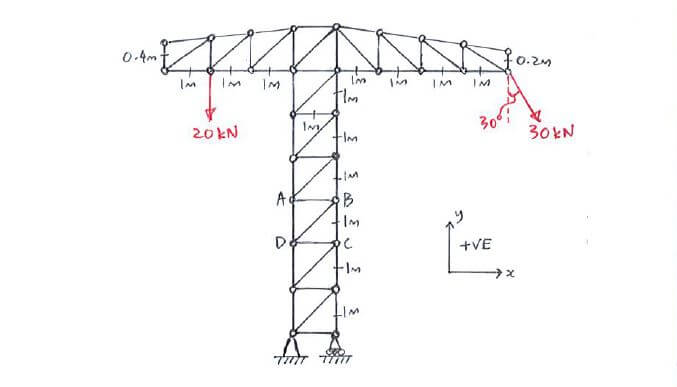

Find the force in member BD using the method of sections.

Find the force in member BD using the method of sections.

Click below to show answer. X

Step 1:

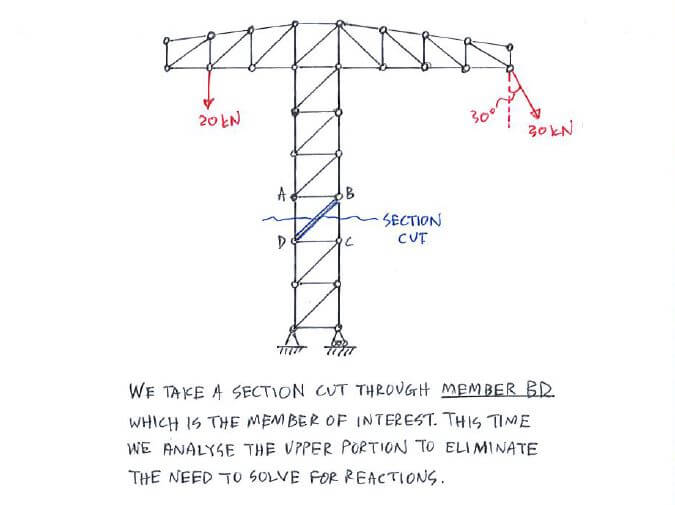

Choose location of section cut

Step 1:
Choose location of section cut

Method of Sections solution step 1

Step 2:

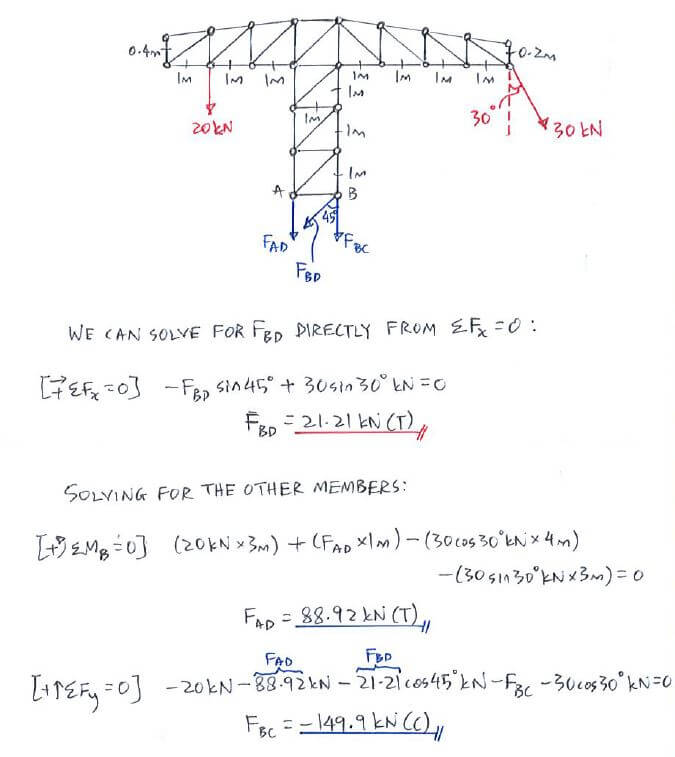

Draw FBD of selected truss section cut, and apply equations of equilibrium to solve for F_BD

Step 2:
Draw FBD of selected truss section cut, and apply equations of equilibrium to solve for F_BD

Method of Sections solution step 2

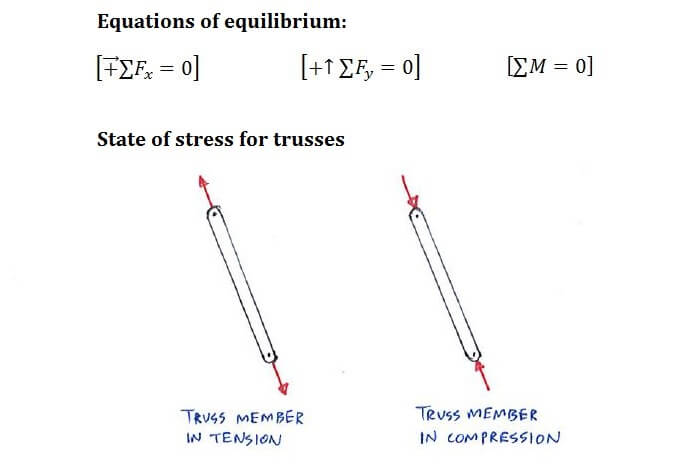

Useful formula:

Useful formula:

Method of Sections formula

Now that you've mastered this question, you can try Question 3.
