Question 3

This time we will be solving the same question as Q3 in Section 3.2 (method of joints), to see whether we get the same answer.

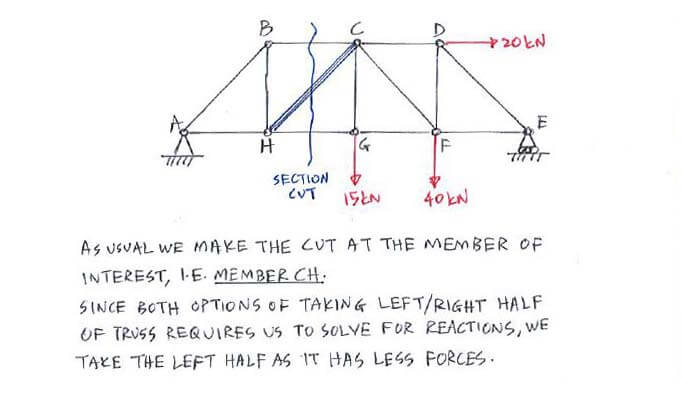

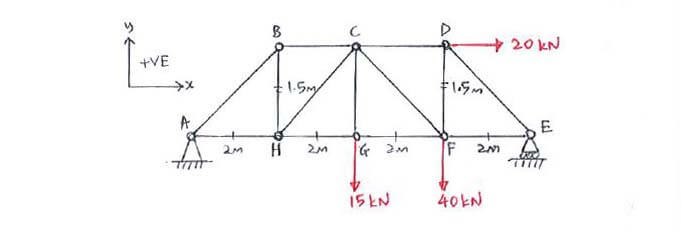

Calculate the force in member CH using the method of sections.

This time we will be solving the same question as Q3 in Section 3.2 (method of joints), to see whether we get the same answer.

Calculate the force in member CH using the method of sections.

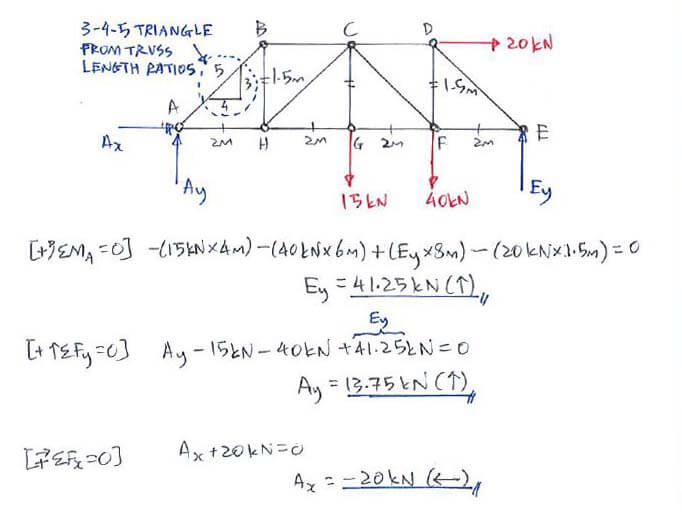

Click below to show answer. X

Congratulations! You've completed all the questions in this topic. Let's look at C3.4: Frames and Machines now.
