Normal and Shear Stress example question

The diagram shows a cantilevered wooden plank. Calculate the:

Normal stress due to the 10 kN axial force
Shear stress due to the 15 kN shear force

The diagram shows a cantilevered wooden plank. Calculate the:

Normal stress due to the 10 kN axial force
Shear stress due to the 15 kN shear force

Click below to show answer. X

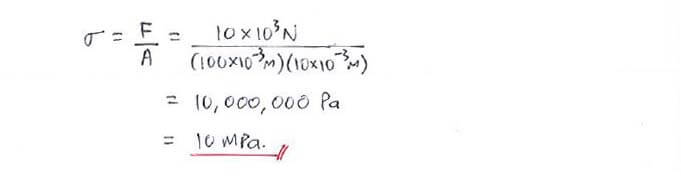

Step 1:
Calculate normal stress

Step 1:
Calculate normal stress

Normal and Shear Stress solution step 1

Step 2:
Calculate shear stress

Step 2:
Calculate shear stress

Normal and Shear Stress solution step 2

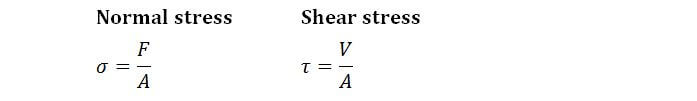

Useful formula:

Useful formula:

Normal and Shear Stress formula

Now that you've mastered this question, you can try Question 1.
