Deformation and Strain question 1

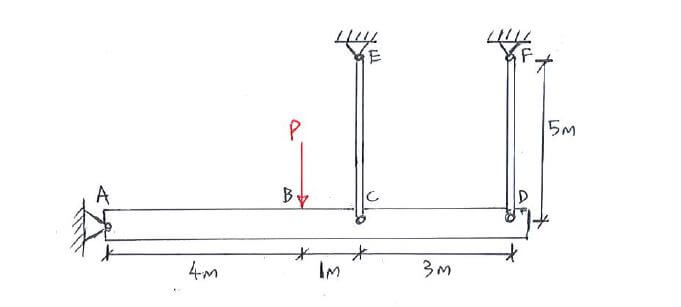

If point B deflects by 8 mm due to force P, calculate the normal strain in rods CE and DF.

Assume that beam AD is rigid and neglect any tilting in rods CE and DF.

If point B deflects by 8 mm due to force P, calculate the normal strain in rods CE and DF.

Assume that beam AD is rigid and neglect any tilting in rods CE and DF.

Click below to show answer. X

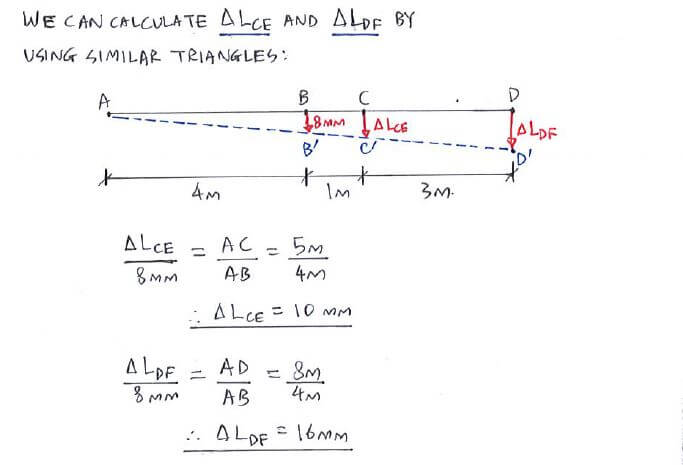

Step 1:
Calculate the change in length ΔL in rods CE and DF

Step 1:
Calculate the change in length ΔL in rods CE and DF

Deformation and Strain solution step 1

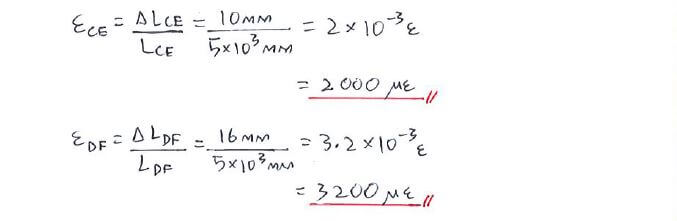

Step 2:
Calculate the normal strain in rods CE and DF

Step 2:
Calculate the normal strain in rods CE and DF

Deformation and Strain solution step 2

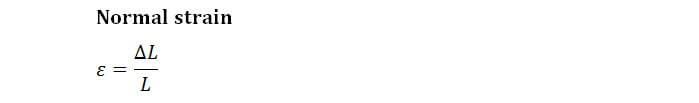

Useful formula:

Useful formula:

Deformation and Strain formula

Now that you've mastered this question, you can try Question 2.
