Example Question 1

Example Question 1

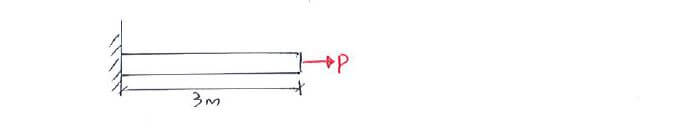

Deformation and Strain example question 1

If the rod stretches by 1.5 mm due to P, calculate the normal strain in the rod.

If the rod stretches by 1.5 mm due to P, calculate the normal strain in the rod.

Click below to show answer. X

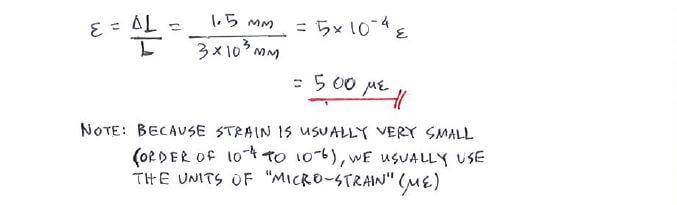

Step 1:
Calculate normal strain

Step 1:
Calculate normal strain

Deformation and Strain solution step 1

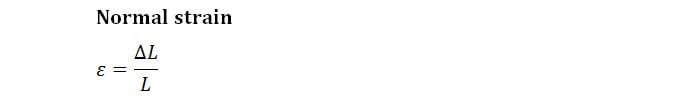

Useful formula:

Useful formula:

Deformation and Strain formula

Now that you've mastered this question, you can try Example 2.
