Question 1
Question 1
Determine the normal stress in A, B and C

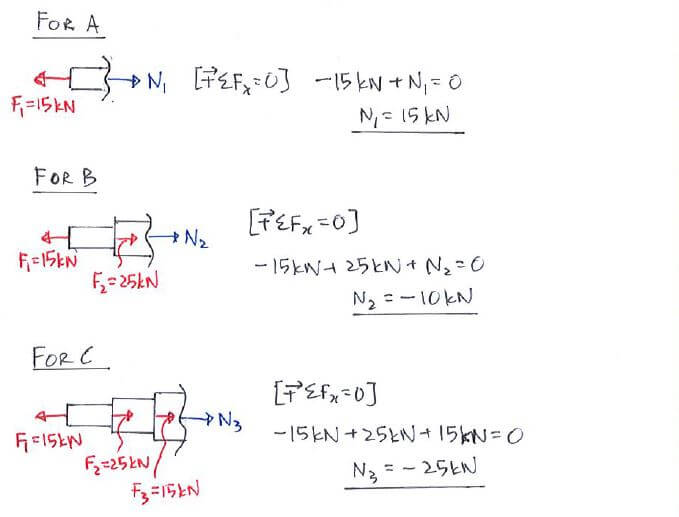

>> Before starting, it's important to note that stress at any point is dependent on the internal force at that particular point. Therefore we will calculate the internal forces at A, B and C before getting the stress.
Determine the normal stress in A, B and C
>> Before starting, it's important to note that stress at any point is dependent on the internal force at that particular point. Therefore we will calculate the internal forces at A, B and C before getting the stress.
