Thin-Walled Pressure Vessels question 1

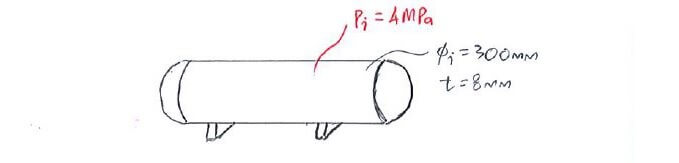

The pressure vessel above has spherical end-caps. Calculate:

σ_hoop, σ_long, σ_r (inner radius) at the cylindrical portion
σ_hoop, σ_long, σ_r (inner radius) at the spherical end-caps

The pressure vessel above has spherical end-caps. Calculate:

σ_hoop, σ_long, σ_r (inner radius) at the cylindrical portion
σ_hoop, σ_long, σ_r (inner radius) at the spherical end-caps

Click below to show answer. X

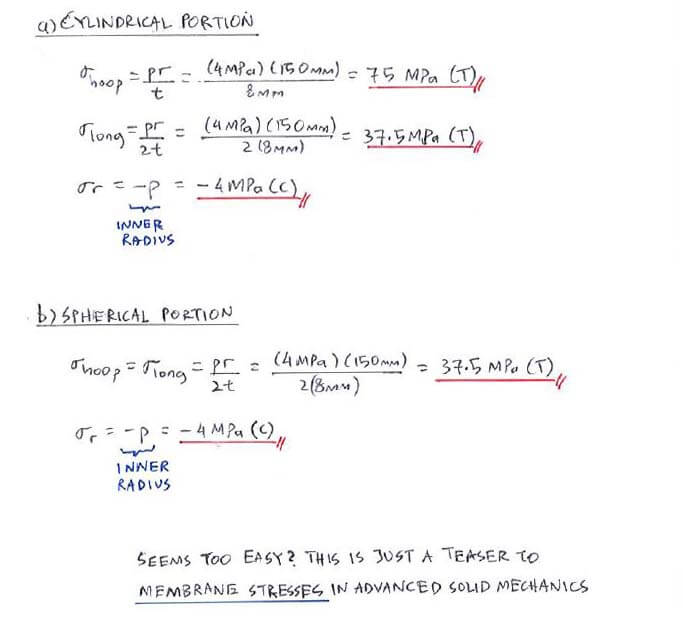

Step 1:
Use formulas to calculate σ_hoop, σ_long, σ_r

Step 1:
Use formulas to calculate σ_hoop, σ_long, σ_r

Thin-Walled Pressure Vessels solution step 1

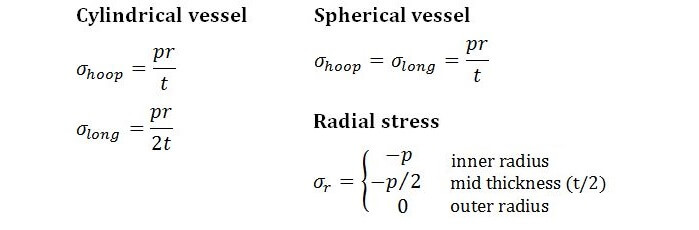

Useful formula:

Useful formula:

Thin-Walled Pressure Vessels formula
