Question 3

Question 3

Stress From Combined Loadings question 3

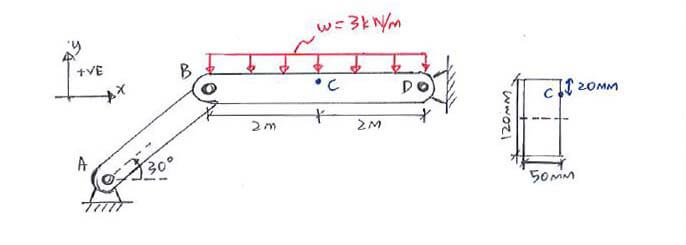

Determine the stresses acting on point C.

Determine the stresses acting on point C.

Click below to show answer. X

Step 1:
Determine the stresses that are present at C

Step 1:
Determine the stresses that are present at C

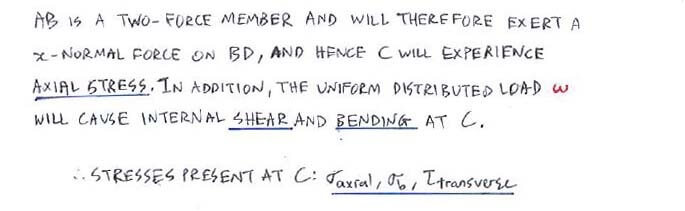

Stress From Combined Loadings solution step 1

Step 2:
Calculate the internal forces at C

Step 2:
Calculate the internal forces at C

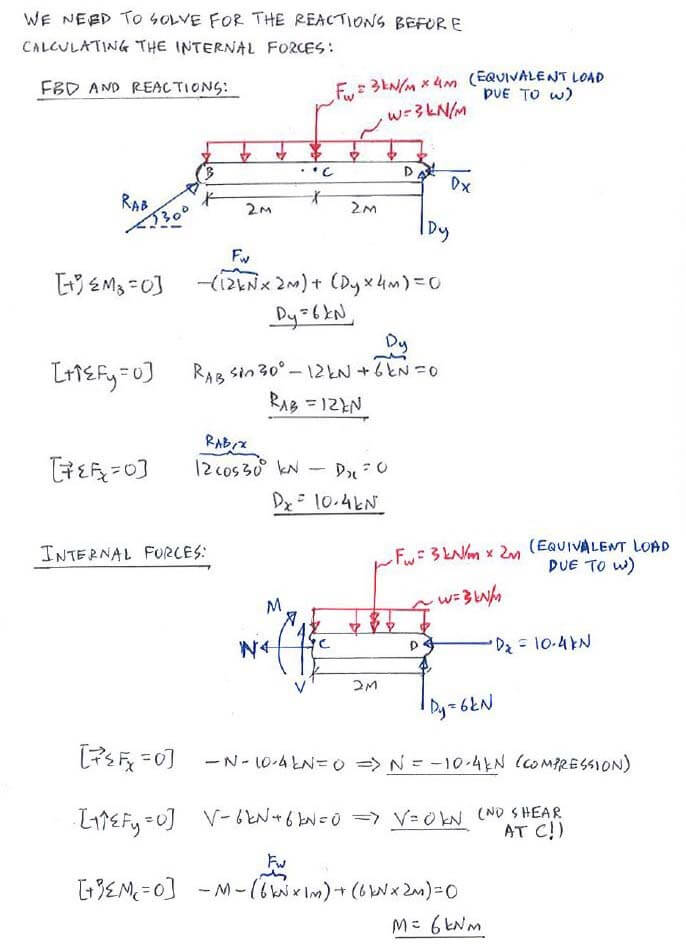

Stress From Combined Loadings solution step 2

Step 3:
Calculate section properties (I)

Step 3:
Calculate section properties (I)

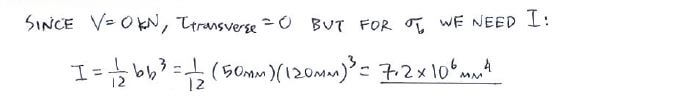

Stress From Combined Loadings solution step 3

Step 4:
Calculate stresses at C

Step 4:
Calculate stresses at C

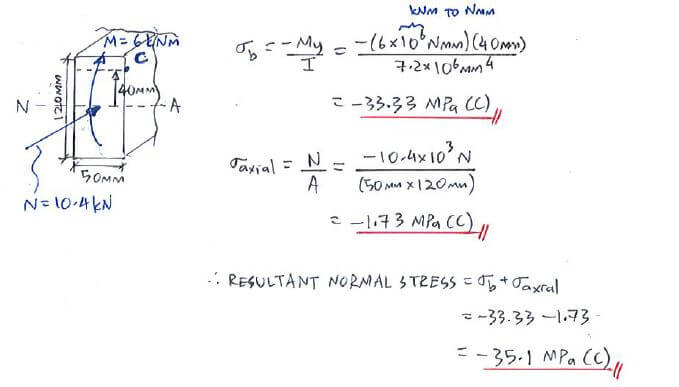

Stress From Combined Loadings solution step 4

Useful formula:

Useful formula:

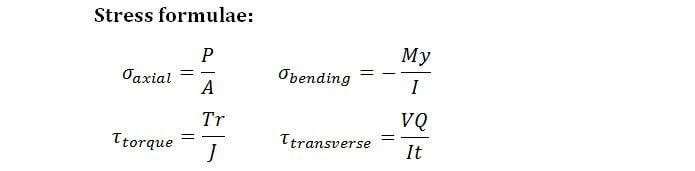

Stress From Combined Loadings formula

Congratulations! You've completed all the questions in this topic. Let's look at C7: Stress Transformation now.
