Example Question

Example Question

Stress From Combined Loadings example question

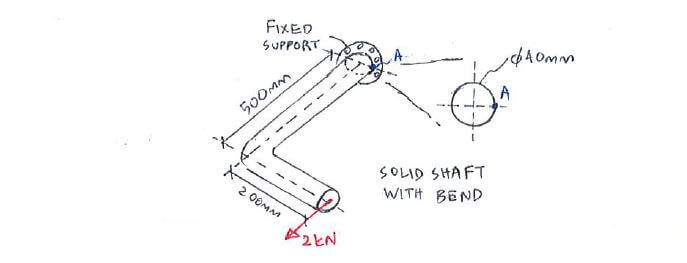

Determine the stresses acting on point A on the root of the shaft.

Determine the stresses acting on point A on the root of the shaft.

Click below to show answer. X

Step 1:

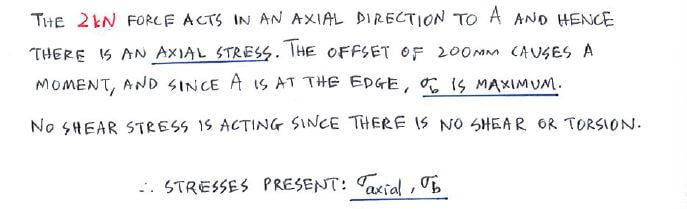

Determine the stresses that are present at A

Step 1:
Determine the stresses that are present at A

Stress From Combined Loadings solution step 1

Step 2:

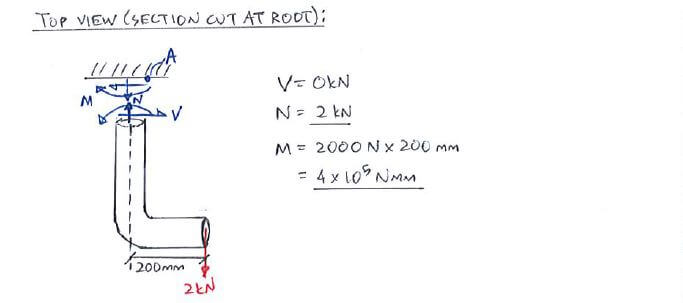

Calculate the internal forces at A

Step 2:
Calculate the internal forces at A

Stress From Combined Loadings solution step 2

Step 3:

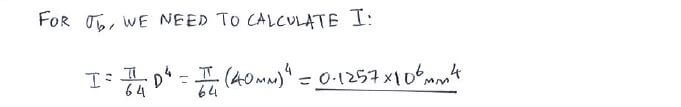

Calculate section properties (I)

Step 3:
Calculate section properties (I)

Stress From Combined Loadings solution step 3

Step 4:

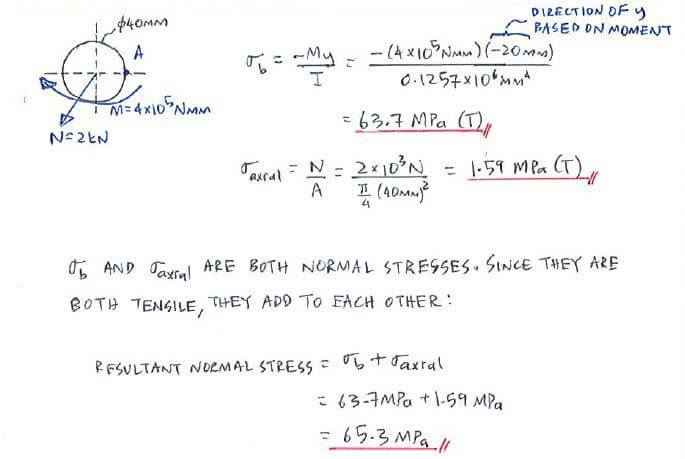

Calculate stresses and resultant stress

Step 4:
Calculate stresses and resultant stress

Stress From Combined Loadings solution step 4

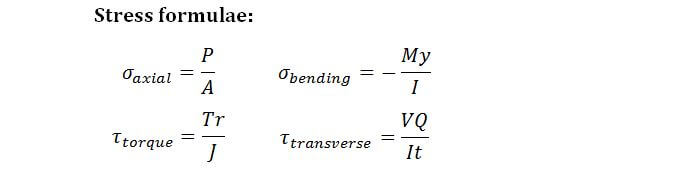

Useful formula:

Useful formula:

Stress From Combined Loadings formula

Now that you've mastered this question, you can try Question 1.
