Click below to show answer.
X
Step 1: Determine the stresses that are present at A
Step 1: Determine the stresses that are present at A
|
|
|

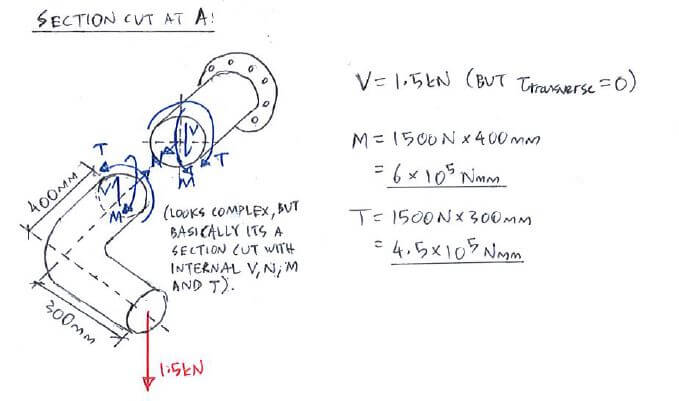

Step 2: Calculate the internal forces at A
Step 2: Calculate the internal forces at A
|
|
|
Step 3: Calculate section properties ( J, I)
Step 3: Calculate section properties ( J, I)
|
|
|

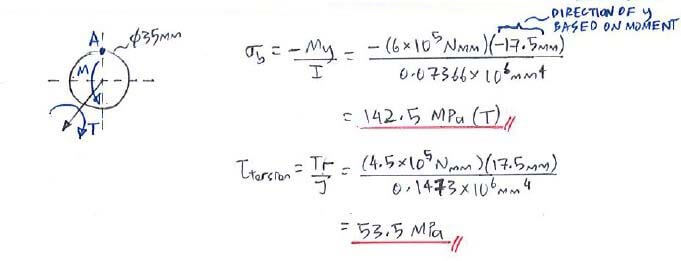

Step 4: Calculate σbending and τtorsion
Step 4: Calculate σbending and τtorsion
|
|
|
|
Useful formula:
Useful formula:
|
|
|
Now that you've mastered this question, you can try Question 2.
